Dual-focus Fluorescence Correlation Spectroscopy (2fFCS)

A variation on the FCS method that uses the distance between two confocal volumes as a reference

To quantitatively evaluate a FCS experiment, one has to exactly know the shape and the size of the confocal volume. The problem is that the confocal volume sensibly depends on numerous parameters of the optical set-up, refractive index mismatch of the sample solution and the objective’s immersion medium, coverslide thickness variations and especially the dependence on optical saturation of the fluorescent dye, which can occur at even very low excitation powers.
In contrast to conventional FCS dual-focus FCS (2fFCS) is robust against these FCS artifacts thus allowing to measure absolute diffusion coefficients. This is achieved because instead of the size and shape of the confocal volume 2fFCS uses the distance between two confocal volumina as a reference.

Scheme of the general layout for a 2fFCS setupThe 2fFCS set-up is based on a specificly modified MicroTime 200 confocal microscope. To generate the two shifted foci, two orthogonally polarized, pulsed diode lasers are combined with a polarization sensitive beamsplitter and afterwards coupled into a polarization maintaining single-mode fibre. At the fibre output the light is again collimated by an appropriate lens.
Both lasers are pulsed alternately (Pulsed Interleaved Excitation, PIE). The combined light consists of a train of laser pulses with alternating orthogonal polarization. Before the objective the laser beam passes through a Nomarski prism. The principal axes of the Nomarski Prism are aligned with the orthogonal polarizations of the laser pulses, so that the prism deflects the laser pulses in two different directions according to their corresponding polarization. After focussing the light through the objective, two overlapping excitation foci are generated with a small lateral shift between them. The distance between the beams for a given wavelength is defined by the DIC prism and the objective. As long as these two elements are used, the distance will remain accurately constant over time. A TCSPC-unit is used for data acquisition, operating in the time-tagged time-resolved (TTTR) mode, which allows to record for every detected photon its arrival time with a temporal resolution in the nano-second range (macroscopic time) and its arrival time with respect to the last laser pulse with picosecond timing resolution (TCSPC time).
The TCSPC time of each recorded photon is used to determine in which laser focus/detection region the fluorescence light was generated. Thus, for each laser focus the corresponding autocorrelation function can be calculated. In addition to the autocorrelation curves, one can also correlate the fluorescence signal from one laser focus with that of the second focus. The shape of an autocorrelation curves is completely determined by the confocal volume(s), whereas the shape of the cross-correlation curve is also dependent on the overlap of the two foci. If the distance between both lasers is known, a global fitting of both auto- and cross-correlation curves yields the absolute diffusion coefficient. This is because the relative time shift between the cross correlation and auto correlation curves scales with the square of the foci distance divided by the diffusion coefficient. Moreover, the relation between cross-correlation and auto correlation amplitudes is a direct measure for the focus overlap.

Consequently, the essential components of a 2fFCS set-up are:

  • two pulsed laser source(s) of the same wavelength
  • single photon sensitive detector(s)
  • dichroic mirror (to separate fluorescence signal from excitation light)
  • Nomarski Prism to generate two overlapping excitation foci
  • water objective with high NA to reduce aberration and increase quantum yield
  • TCSPC electronic unit
  • FCS acquisition and analysis software

Related technical and application notes:

PicoQuant is the only supplier of commercial, turn-key system capable of 2fFCS

MicroTime 200 - Modular, time-resolved confocal fluorescence microscopy platformMicroTime 200

Modular, time-resolved confocal fluorescence microscopy platform

The MicroTime 200 time-resolved fluorescence microscope system is a powerful instrument capable of Fluorescence Lifetime Imaging (FLIM) with single molecule detection sensitivity. It contains the complete optics and electronics for recording virtually all aspects of the fluorescence dynamics of microscopic samples or femtoliter volumes. The instrument gains its exceptional sensitivity and flexibility in combination with unprecedented ease-of-use from a unique fusion of miniaturized and highly sophisticated state-of-the-art technologies. Although, these technologies enable to run an instrument of comparable complexity and power without having to spend more time on instrument maintenance than on original scientific content, the MicroTime200 remains an open platform that allows the advanced scientist to easily built upon the open character of the instrument in order to realize highly customized applications

Scheme of the general layout for a 2fFCS setupThe following core components are needed to build a system capable of 2fFCS measurements, which are (partly) available from PicoQuant:

Using 2fFCS to determine the hydrodynamic Stokes radius of Calmodulin (CaM) labeled with ATTO 655 as a function of free calcium

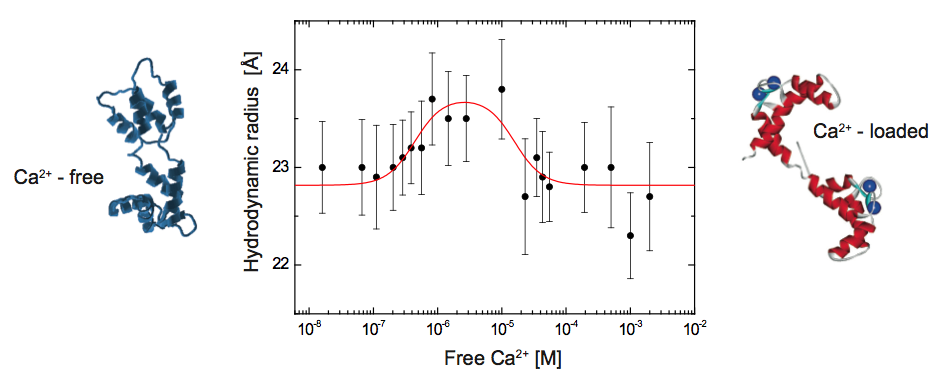

Hydrodynamic radius of Calmodulin as a function of Ca2+ uptakeThe big potential of 2fFCS is demonstrated by the monitoring of the conformational change of calmodulin during calcium binding. CaM belongs to the family of calcium-binding proteins and is a key component of the calcium second messenger system. This small, acidic protein (~16.7kD) is ubiquitous in all eukaryotic cells and can bind up to four calcium ions. To date the calcium loaded form is known to regulate the functions of about 100 diverse target enzymes and structural proteins.

Here, the Stokes radius is measured as a function of the free calcium concentration. The results give direct evidence to the existence of an intermediate Ca2+-CaM conformation and prove that 2fFCS is able to monitor smallest changes in hydrodynamic properties of bio-molecules. The diffusion coefficient of Atto655 labeled CaM at different calcium concentrations was measured with 2fFCS at 25°C. For the whole set of measurements the corresponding Stokes radii were derived from the estimated diffusion coefficients.
At very low calcium concentrations (16 nM) CaM is in the apo-conformation, whereas at high calcium concentrations (0.5 - 2 mM), CaM is calcium saturated and adopts the Ca2+-conformation. Between the apo- and the Ca2+- conformation a rise in Stokes radius of up to 23.7 Å at 3 μM free calcium can be observed. This rise in Stokes radius is attributed to a conformational change of CaM upon calcium binding and an associated rearrangement of the hydration layer. Above 3 μM, the Stokes radius is decreasing down to 22.8 Å. Since the calcium binding constants range from 0.2 μM to 40 μM under comparable conditions, it is likely that we monitor an intermediate conformation of CaM where only some of the binding sites are occupied by calcium ions, but not all. Comparing the observed biphasic behaviour with published results, it is most likely that this change in conformation can be attributed to the formation of Ca2+- CaM.


Courtesy of T. Dertinger, UCLA Los Angeles, USA and J. Enderlein, Georg-August-Universität Göttingen, Germany

Reference: T. Dertinger, PhD. Thesis, Universität Köln, Germany, (2007)

What is dual-focus fluorescence correlation spectroscopy (2fFCS)?

In 2fFCS, fluorescence fluctuations from species moving between two confocal volumes with a fixed distance are measured. This makes the method more robust against FCS artifacts compared to a single confocal volume and allows measuring absolute diffusion coefficients.

How does 2fFCS compare to FCS?

Quantitative evaluation of FCS measurements requires knowing the exact shape and size of the confocal volume. However, this volume is strongly influenced by many factors of the optical set-up. 2fFCS circumvents these sources of artifacts by using the fixed distance between two confocal volumes instead. The main drawback is that 2fFCS measurements are more time consuming.
