VisIR

High Power NIR to IR Picosecond Laser

High-power IR picosecond laser offering flexible pulse control, precise timing, and broad wavelength versatility for advanced imaging and ultrafast spectroscopy.
VisIR high-power IR picosecond laser from PicoQuant for microscopy, spectroscopy, and sensing applications.
Table of contents

Key Benefits

High quality data
Enhanced resolution
Reduced photobleaching
Reliable timing stability
Consistent performance over long experiments
Easy integration & operation

Available Configurations

Wavelengths

Wavelength (±10) [nm]
Type
Pulse (FWHM) [ps]
Max. rep. rate [MHz]
Avg. power [mW]
CW power [mW]
766
VisIR-765
< 80
80
300
-
766
VisIR-765-HC
< 500
80
1500
-
774
VisIR-775
< 80
80
300
-
774
VisIR-775-HC
< 500
80
1500
-
780
VisIR-780-HC
< 500
80
1500
-
1064
VisIR-1064
< 90
80
750
-
1064
VisIR-1064-HC
< 500
80
1000
-
1531
VisIR-1530
< 80
80
750
-
1531
VisIR-1530-HC
< 600
80
750
-
1550
VisIR-1550
< 80
80
750
-
1550
VisIR-1550-HC
< 600
80
750
-
1950
VisIR-1950
< 100
80
500
-
1950
VisIR-1950-F
< 100
80
500
-
Detail explanations and measurements conditions for the listed specifications are provided in the datasheet.

Specifications

Available Wavelength765 to 1950 nm
Spectral Width<< 1 nm
Polarization Extinction Ratio (PER)VisIR-765(-HP) > 1:1000 (> 30 dB) VisIR-1064 > 1:60 (> 18 dB) VisIR-1530/1550(-HP) > 1:100 (> 20 dB) VisIR-1950: linear, non polarisation maintaining
Power stability (12 hours) (ΔT (ambient) < 0.5 K)< 3 % RMS
Other optical specs (power, pulse, beam shape)See wavelengths table
Rangeuser selectable: 80, 40, 20, 10, 5 or 2.5 MHz (80 MHz base frequency) 1 000, 500, 250, 125, 62.5 or 31.25 kHz (1 MHz base frequency)
Range< 1 Hz to 80 MHz
Trigger levelfixed trigger level at -400 mV
ConnectorNIM-CAMAC
Range< 1 Hz to 80 MHz
Amplitude- 5 V to + 5 V (maximum limits)
Trigger levelAdjustable between - 1 V and + 1 V
ConnectorBNC
Amplitude< - 800 mV into 50 Ohms (NIM)
ConnectorSMA
TimingSynchronous to the pulse repetition rate
Trigger in (NIM) to sync outTyp. 9 ± 1 ns
Trigger in (NIM) to optical outTyp. 80 ns
Sync out to optical outTyp. 70 ns
ConnectorUSB Type-C 3.0
USB version2.0
CompatibilityPicoQuant Laser Driver Software under Windows 10
ConnectorSub-D9 female
Baud rate115200
Data8 bit
Paritynone
Stop1 bit
ConnectorLEMO, PicoQuant proprietary interface to connect to dedicated Sepia Extention Module SEM 828
CompatibilityPicoQuant Laser Driver Software under Windows 10
ConnectorSMA female
Connector4 pin LEMO EGG.00.304.CLL female
Size (l × w × h)352 × 336 × 82.5 mm
Weight6.5 kg
Temperature range10 - 30 °C
Maximum power consumption100 to 250 VAC, 50/60 Hz, max 130 Watts

Download the datasheet here.

Laser Safety Warning Label (Class 3B, Class 4)
Laser Safety Warning Label (Class 3B, Class 4)

All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.

Pulse. Power. Precision. IR at Its Best.

High-Power IR Picosecond Laser for Advanced Research

Flexible Pulse Control for Diverse Experimental Setups

VisIR is a versatile high-power IR picosecond laser offering flexible pulse control, precise timing, and broad wavelength coverage including 1064 nm and 1550 nm. Its Master Oscillator Fiber Amplifier (MOFA)-based design supports both narrow picosecond pulses (70 ps) and extended pulse operation up to ~0.5 ns, with adjustable pulse durations for optimized excitation or depletion conditions. Variable repetition rates from single shot to 80 MHz enable seamless adaptation to diverse experimental requirements. Whether used in advanced microscopy, ultrafast spectroscopy, or IR sensing, VisIR delivers stable, high-quality performance within a compact, stand-alone platform.

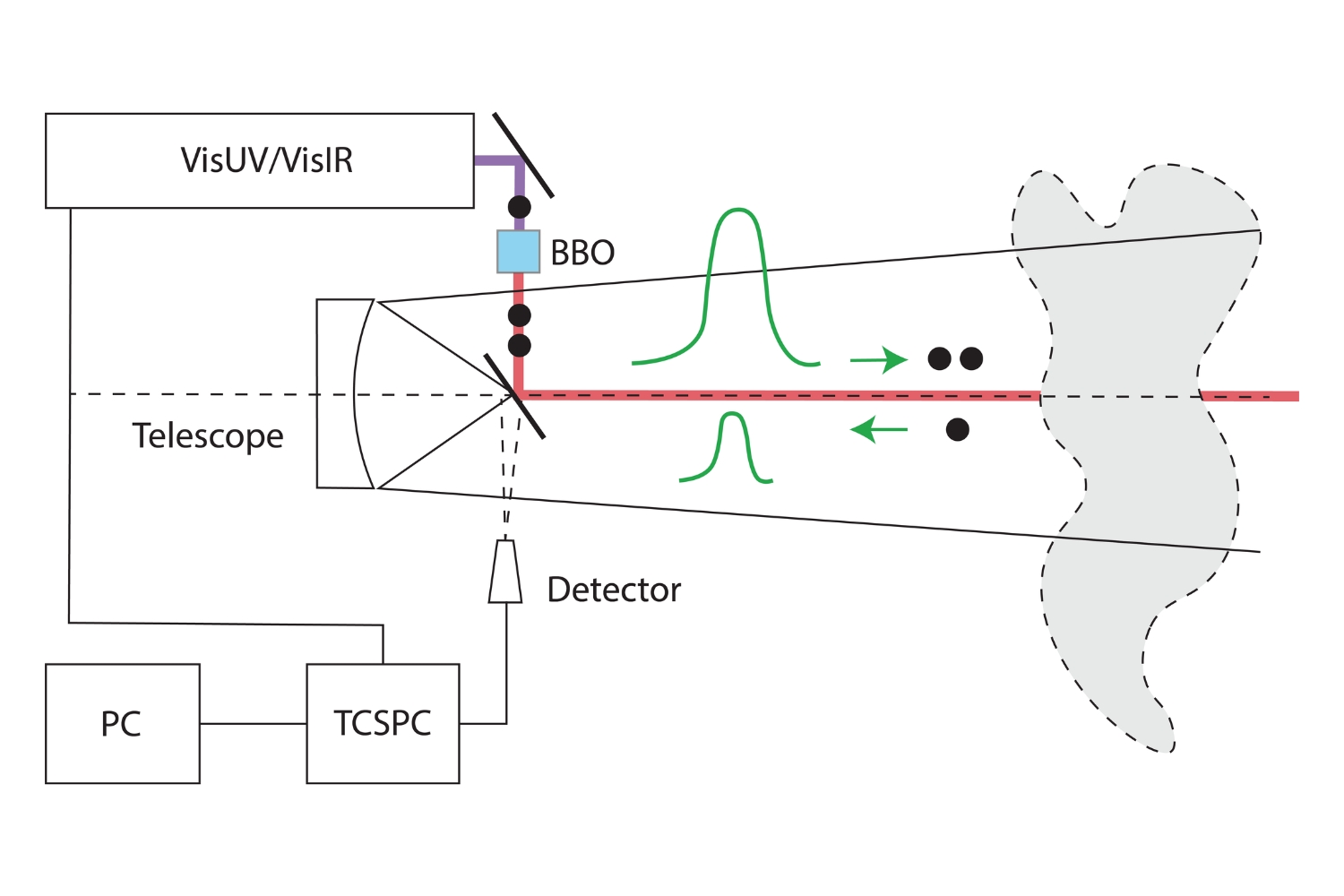

Schematic of a quantum LiDAR setup using SPDC-generated entangled photons enabled by short, high-peak-power pulses from the VisUV/VisIR platform.

Quantum LiDAR using Entangled Photons

Light Detection and Ranging (LiDAR) is a method for determining ranges by targeting an object with a laser and measuring the time for reflected light to return. While being extremely successful, it struggles to distinguish genuine signals from background noise and potential jamming, especially in complex environments. It was recently demonstrated that utilizing spatio-temporal correlations inherent in entangled photons can effectively address these challenges. VisIR‘s short-pulsed emissions and high peak power allow for an efficient Spontaneous Parametric Down-Conversion (SPDC) in nonlinear crystals to generate entangled photon pairs with high stability, perfectly suited for applications in quantum imaging and secure sensing.

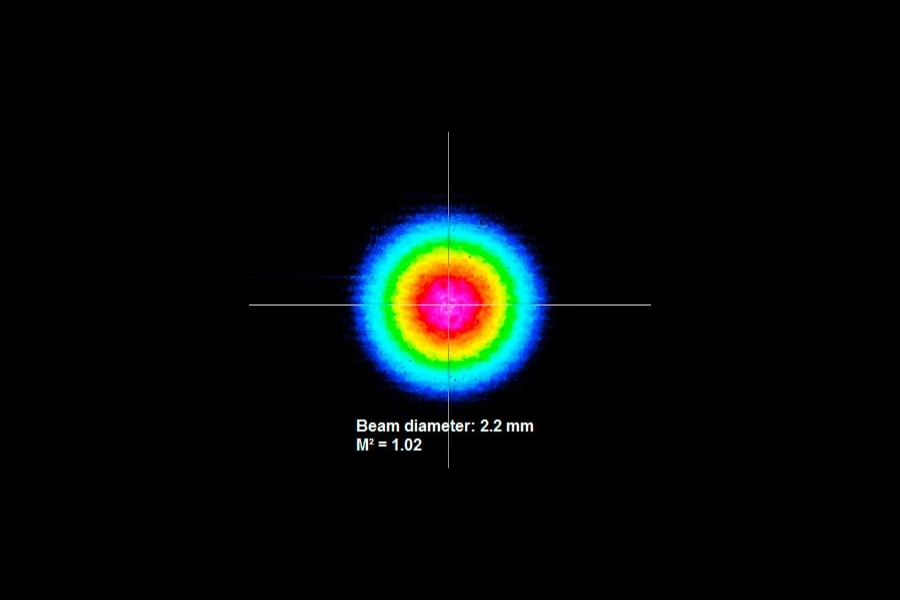

Measured TEM₀₀ beam profile of the VisIR with near-ideal Gaussian shape, enabling precise beam shaping for efficient STED depletion.

Enhanced STED Performance with Stable IR Depletion

High-power IR pulses and precise timing control open new possibilities for efficient depletion in STED microscopy. The nearly perfectly circular TEM₀₀ beam profile (M² < 1.1) of VisIR ensures clean donut formation, enabling accurate beam shaping and higher depletion efficiency. Stable 766 nm generation and adaptable repetition rates further support reproducible high-resolution imaging in demanding multi-laser environments.

Configurable Fiber Coupling

VisIR can be equipped with fiber coupling for single mode or multi-mode delivery. In practice the coupling reaches above 60 % for single mode fibers and above 80 % for multi-mode fibers. Each coupled unit is prepared and aligned to provide a stable and well controlled output at the fiber interface.

Advanced Laser Operation Modes

Pulsed, Burst, and CW Modes

In materials science, choosing the right laser operation mode is key to unlocking accurate and insightful experimental results. Relevant modes: pulsed, burst, CW, fast switched CW.
Discover operation modes
Discover How Pulsed, Burst, and CW Modes Advance Your Research Goals
Scientific Insights & Resources

Latest Blog Articles

Schematic diagram of a master oscillator fiber amplifier showing a gain-switched seed laser, optical isolator, cladding-pumped fiber amplifier, and nonlinear crystal stage for frequency conversion.
February 11, 2026

Master Oscillator Fiber Amplifier (MOFA) in Picosecond Laser Design

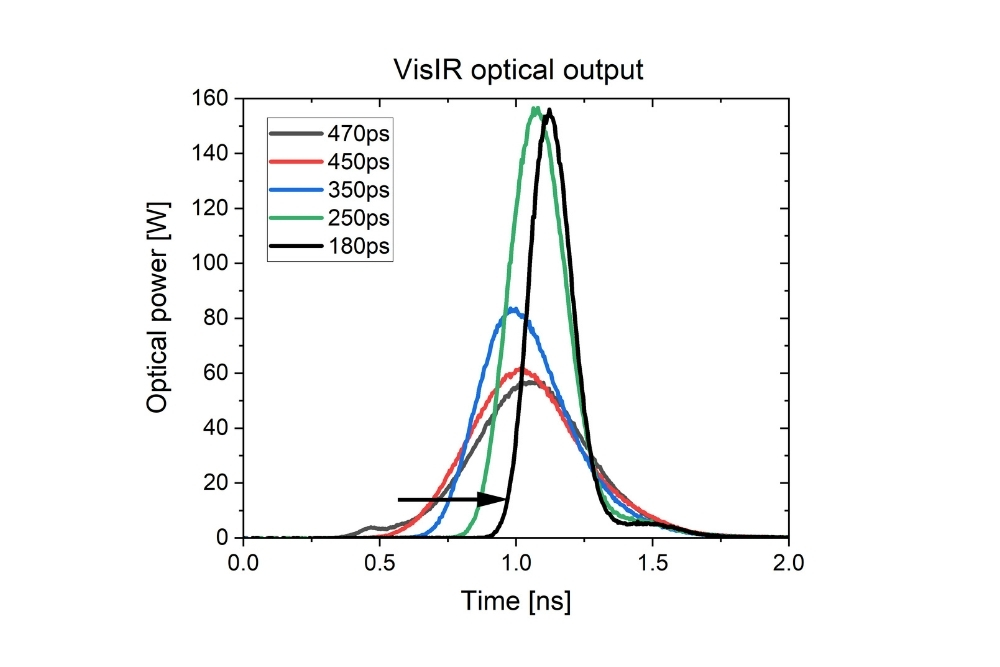

Optical output of a VisIR laser showing adjustable pulse durations between 180 ps and 470 ps using electro-optic modulation driven by the PPG512.
March 16, 2023

Tunable pulse duration upgrade for VisIR

PicoQuant pulsed laser and LED sources
February 5, 2026

Advanced Laser Operation Modes

Schematic diagram of a master oscillator fiber amplifier showing a gain-switched seed laser, optical isolator, cladding-pumped fiber amplifier, and nonlinear crystal stage for frequency conversion.
February 11, 2026

Master Oscillator Fiber Amplifier (MOFA) in Picosecond Laser Design

Optical output of a VisIR laser showing adjustable pulse durations between 180 ps and 470 ps using electro-optic modulation driven by the PPG512.
March 16, 2023

Tunable pulse duration upgrade for VisIR

PicoQuant pulsed laser and LED sources
February 5, 2026

Advanced Laser Operation Modes

Visit our science hub
Relevant for Your Research​

Matching Applications & Methods​

All Applications & Methods
Switcher A&M
Fluorescence lifetime imaging microscopy (FLIM) of fixed neurons showing synaptic protein PSD95 and glial intermediate filament GFAP, revealing structural organization in neuronal cells.
Life Science

Cellular Neuroscience

Schematic illustration of quantum key distribution showing single photons exchanged between Alice and Bob while eavesdropping by Eve introduces detectable disturbances.
Quantum Optics

Quantum Communication

Fluorescence lifetime imaging microscopy (FLIM) of CHO cells reveals spatial heterogeneity and dynamic organization along cellular membranes.
Life Science

Cell Membrane Dynamics

In-Depth Scientific Resources

Scientific Resources

Access in-depth application notes and scientific posters with detailed methods, measurement data, and real-world use cases.

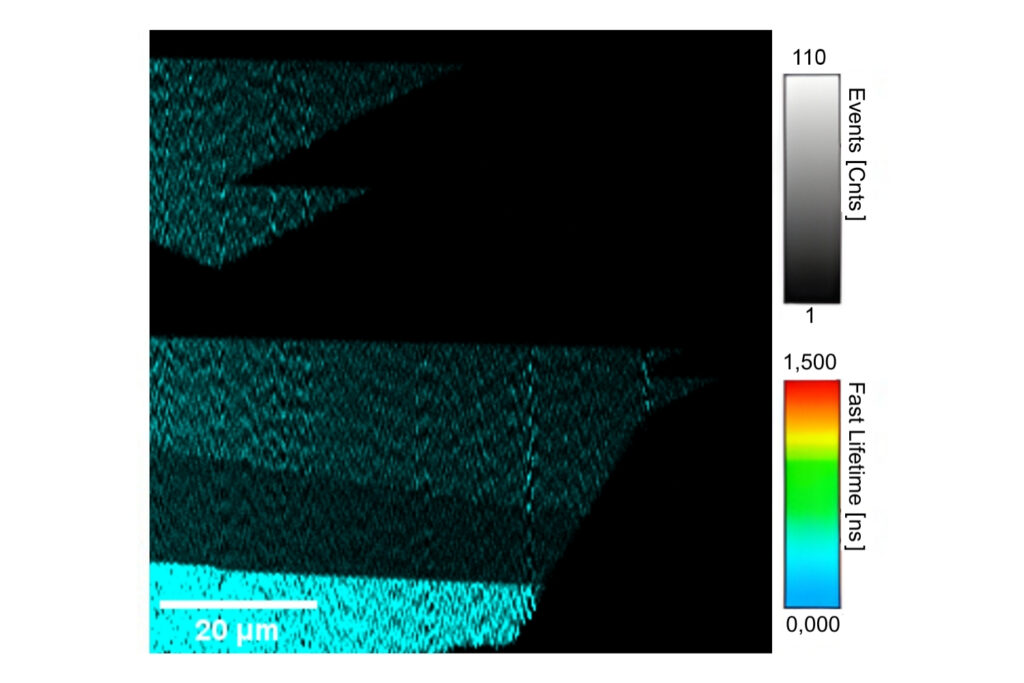

Poster: SHG Imaging Microscopy
