PMA Hybrid Series

Hybrid Photomultiplier Detector Assembly

Enhance your single-photon counting experiments with wide dynamic range and excellent timing precision in the UV and visible even at the highest count rates.
PMA Hybrid Series hybrid photomultiplier detector assembly for single-photon counting and TCSPC measurements.
Table of contents

Key Benefits

Wide dynamic range
Best timing precision for shortest lifetimes
No dead time and negligible afterpulsing
High count rate perfomance
Large, easy-to-align active area
Reliable UV–NIR coverage

High-Performance Hybrid Detection for Photon Counting

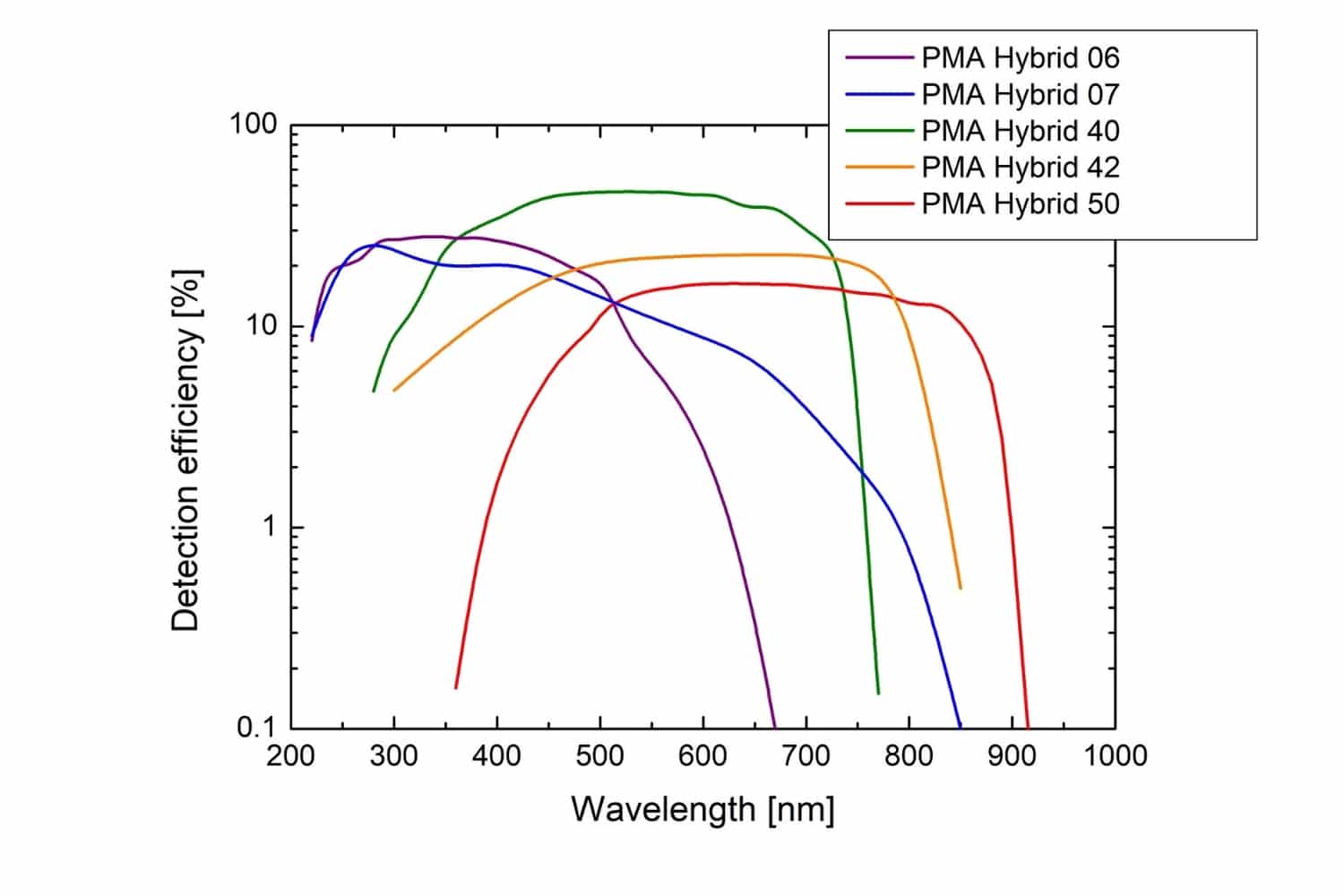

Detection efficiency curves of the different photocathodes available for the PMA Hybrid Series, covering spectral ranges from the UV to the NIR.

Clarity in Every Single Photon

PMA Hybrid Series combines large area hybrid photomultiplier technology (PMTs) with sensitivity of single-photon avalanche diodes (SPADs). With timing precision down to 20 ps, negligible afterpulsing, and detection efficiencies up to 45 %, these detectors enable reliable photon counting in demanding TCSPC, FLIM, and correlation applications. Each module integrates temperature stabilization, RF shielding, and all required electronics for effortless operation and seamless compatibility with PicoQuant systems, spectrometers, and laser scanning microscopes. These capabilities make the PMA Hybrid Series an ideal choice for FCS, FLIM, FRET, TRPL, LiDAR, and other advanced photon-counting workflows.

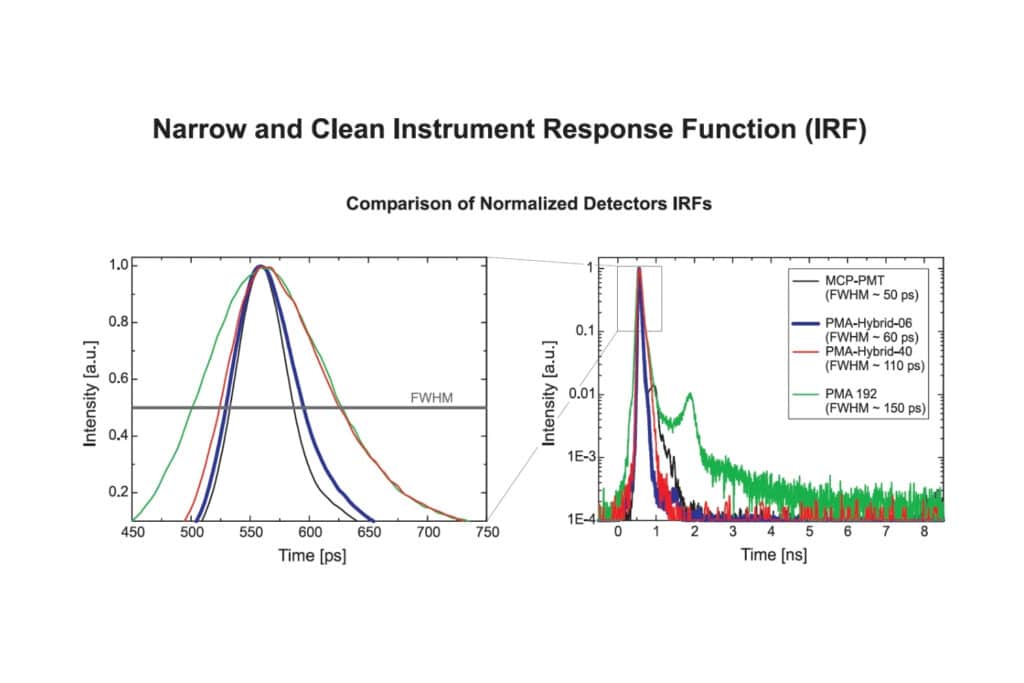

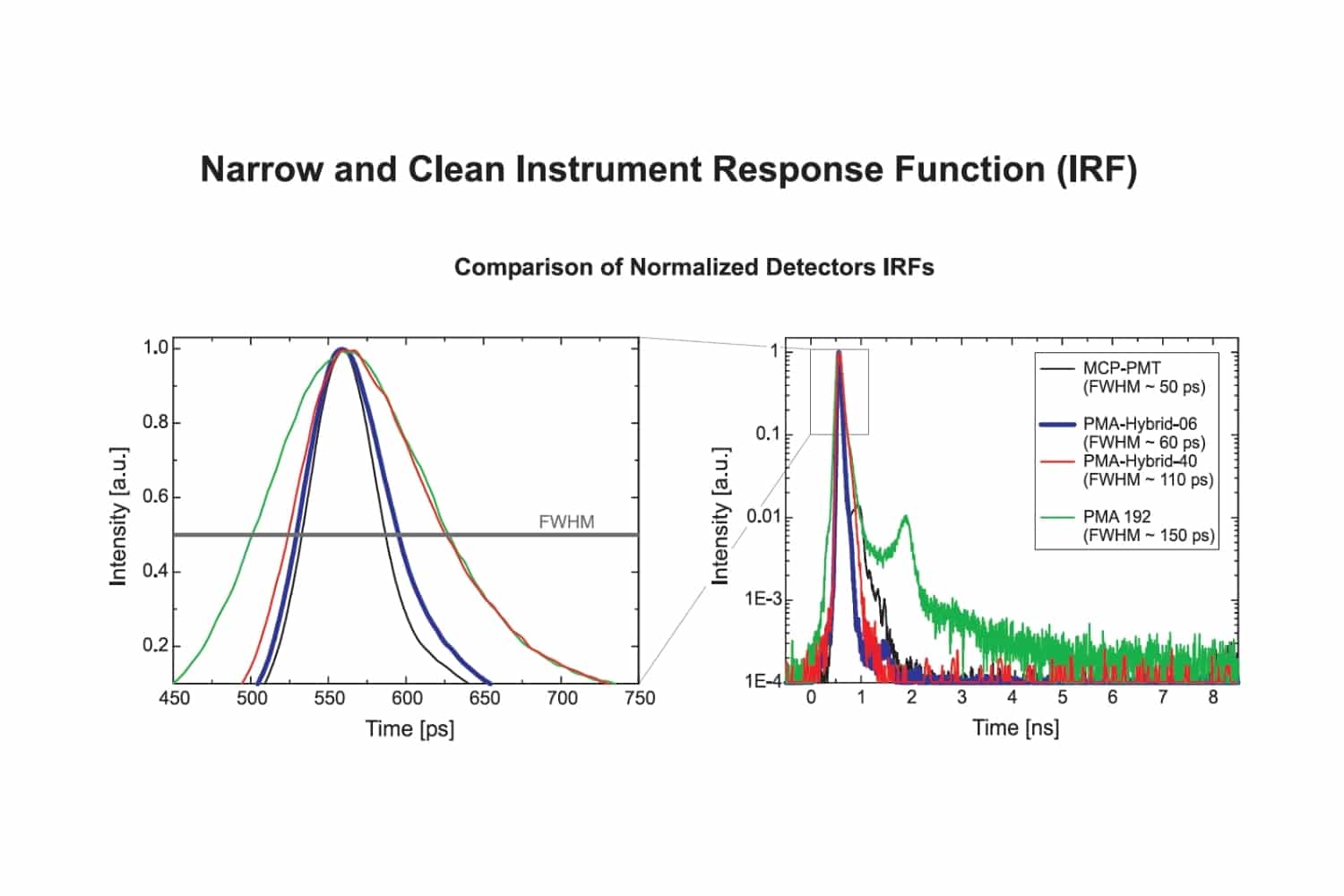

Comparison of normalized instrument response functions (IRFs) of different photon-counting detectors, highlighting the narrow timing response and clean decay behavior of hybrid photomultiplier detectors.

Hybrid Detection in Time-Resolved Measurements

Hybrid photomultiplier detectors combine fast timing, low noise, negligible afterpulsing and dead time-free detection in a way that is difficult to achieve with conventional detector technologies. These characteristics enable reliable photon counting under demanding conditions, including high count rates and time-resolved measurements where detector-related artifacts can otherwise limit accuracy.

Hybrid Detection for High-Rate TCSPC

High-speed TCSPC measurements often face significant challenges from pile-up distortion and timing errors, especially when photon arrival rates approach or exceed the excitation rate. Systems perform reliably only when the detector combines short dead time, low dark counts and minimal afterpulsing. Hybrid photodetectors meet these requirements through their fast response and clean timing behavior, which allows accurate reconstruction of fluorescence decay curves even under high photon flux. PMA Hybrid provides these characteristics in a compact detector module, making it well suited for measurement schemes that require both high count rates and precise timing.

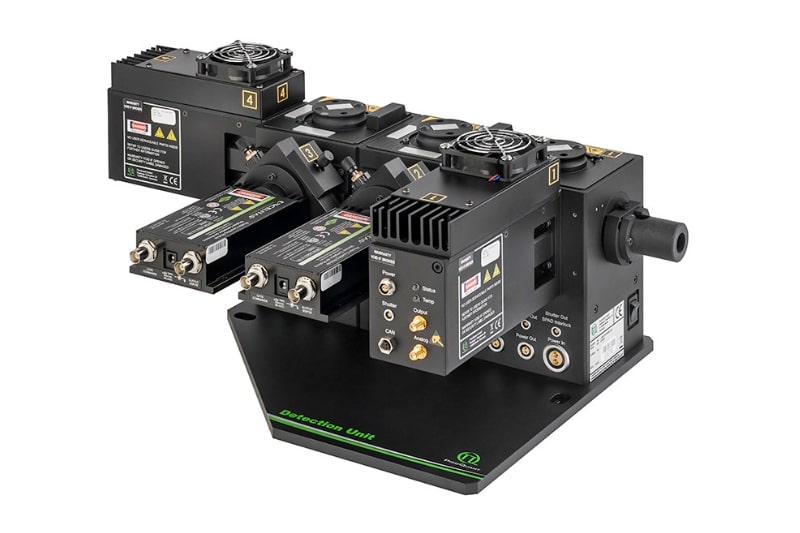

Multichannel detection unit based on Hybrid PMTs and SPCM SPADs.

Key Performance Characteristics

  • Five photocathode options covering 220–890 nm with detection efficiencies up to 45 %
  • Timing performance down to 20 ps FWHM, dead time-free and with negligible afterpulsing, ideal for FCS and correlation methods
  • Large active areas up to 6 mm for high light collection efficiency and flexible optical coupling
  • Nickel-coated housing with dedicated RF shielding and optimized preamplifier for clean TCSPC timing
  • Integrated Peltier cooling, HV supply, overload protection, and dual signal outputs for stable single-photon measurements
  • Direct compatibility with PicoQuant TCSPC systems, spectrometers, and laser scanning microscopes



Specifications

Cathode type

06

07 – 3mm

07 – 6mm

40 – 3mm

40 – 5mm

42

50

Wavelength range

220 nm – 650 nm

220 – 850 nm

220 – 850 nm

300 – 720 nm

300 – 720 nm

300 – 870 nm

380 – 890 nm

Dark counts (cooled)*

typ. 10 cps, max. 20 cps

typ. 100 cps, max. 250 cps

typ. 100 cps, max. 250 cps

typ. 100 cps, max. 300 cps

typ. 300 cps, max. 1000 cps

typ. 150 cps, max. 320 cps

typ. 250 cps, max. 600 cps

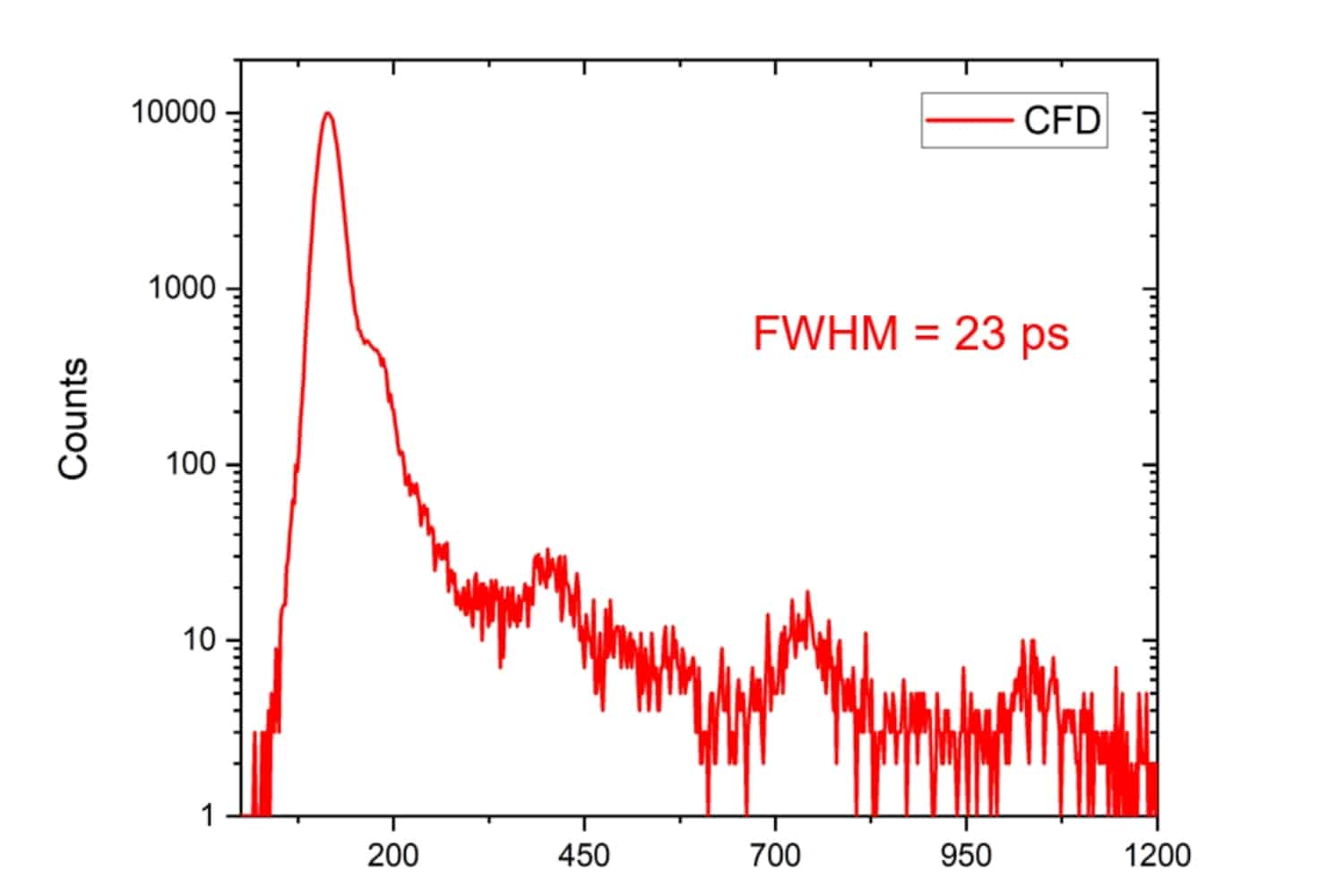

Transit time spread (FWHM, typ. value)

50 ps

20 ps

30 ps

90 ps

170 ps

130 ps

130 ps

Overload shutdown at**

80 MHz

80 MHz

80 MHz

80 MHz

80 MHz

80 MHz

80 MHz

Single electron response width (typ. value)

600 ps

600 ps

600 ps

600 ps

600 ps

600 ps

600 ps

Pulse rise / fall time (typ. value)

400 ps

400 ps

400 ps

400 ps

400 ps

400 ps

400 ps

Connector

SMA female

Impedance

50 Ohms

Polarity

negative

Connector

SMA female

Impedance

> 1k Ohms

Polarity

positive

Max. Out

+10 V (corresponds to 50 Mcps)

Time constant of the amplifier

20 μs

Input

12 V DC

Max. current consumption

0.8 A

Housing (w × d × h)

60 × 175.3 × 114.5 mm

Optical adapters

C-mount, mounting holes for FluoTime 250 / FluoTime 300 spectrometers

*If lower dark counts than those specified here for the detector of your interest are necessary, we can offer you a special selection upon request.

**With CW excitation, lower values at different conditions

All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.

Technical Documentation and Data

Technical Downloads

Datasheet PMA Hybrid Series

Contains specifications, features and applications of hybrid PMT detectors offering low jitter, high sensitivity and no afterpulsing.

Technical Note: Metabolic State Profiling of Organoids with FLIM

Demonstrating metabolic state profiling of organoids using FLIM of NAD(H) autofluorescence with the Luminosa confocal microscope.

Scientific Insights & Resources

Latest Blog Articles

Schematic TCSPC histogram showing pile-up distortion at high count rates with recorded photon distribution rrec(t) deviating from the true impinging distribution rimp(t).
July 11, 2025

Breaking the Pile-Up Barrier: High-Rate TCSPC Beyond the Excitation Limit

FLIM-FRET lifetime map showing reduced donor lifetime of PRG5 at the plasma membrane and in filopodia of HEK293T cells.
January 3, 2025

Resolving Protein Multimerization with Quantitative FLIM-FRET

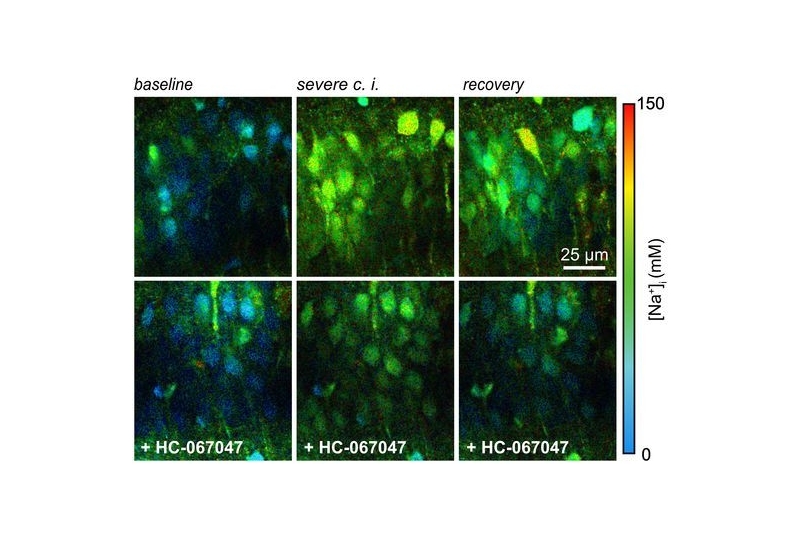

Fluorescence lifetime imaging maps of intracellular sodium concentration in hippocampal neurons during baseline, severe chemical ischemia, and recovery, with and without TRPV4 inhibition.
