Cell membrane dynamics describes the continuous reorganization and motion of lipids and membrane-associated proteins within biological membranes. Rather than static barriers, cellular membranes are dynamic, heterogeneous systems whose physical properties vary across both space and time. These dynamic behaviors arise from lateral diffusion, changes in lipid packing, transient molecular interactions, and active cellular processes. Together, they govern how membranes form functional domains and adapt to environmental or physiological signals.
Membrane dynamics are central to cellular function. Processes such as signal transduction, vesicle trafficking, membrane fusion, and protein sorting depend on the mobility and organization of membrane components. Subtle changes in membrane order or diffusion can alter signaling pathways, regulate protein interactions, or indicate pathological states. Studying membrane dynamics therefore provides direct insight into how the physical properties of membranes regulate biological function in both health and disease.
Quantitative fluorescence techniques allow direct observation of key dynamic processes that define membrane dynamics at cellular membranes. These include lateral diffusion of lipids and membrane proteins, variations in membrane order and fluidity, nanoscale heterogeneity, and proximity or interaction of membrane-associated molecules. These parameters reveal how membranes balance stability and flexibility to support complex cellular functions.
Fluorescence correlation spectroscopy (FCS) quantifies diffusion and molecular mobility within membranes. Fluorescence lifetime imaging microscopy (FLIM) and anisotropy measurements provide information on membrane order, molecular orientation, and the local environment. Förster resonance energy transfer (FRET) reveals nanoscale proximity and molecular interactions, while advanced methods such as STED-FCS extend diffusion analysis beyond the diffraction limit.

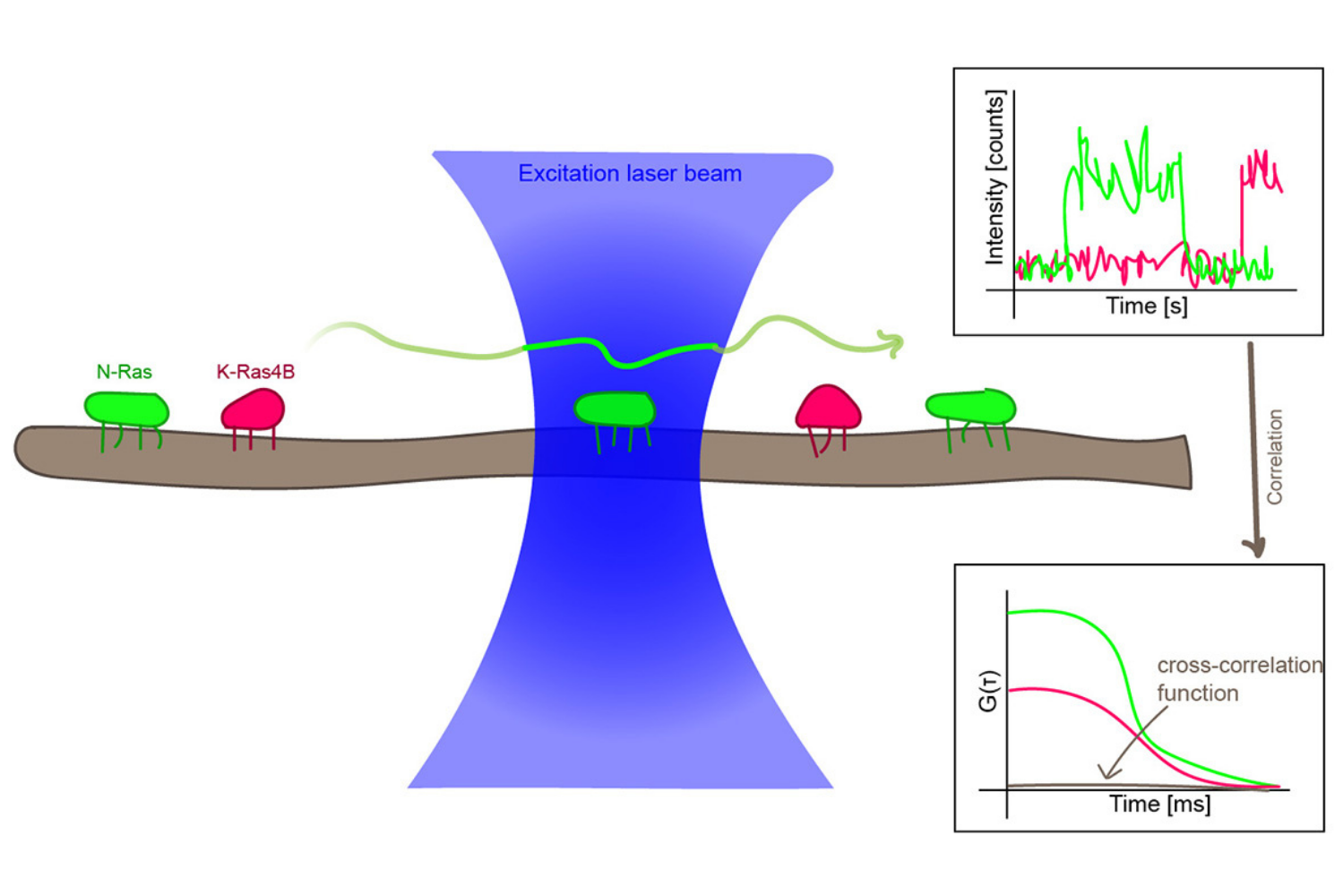

Using FRET and pulsed interleaved excitation fluorescence cross-correlation spectroscopy (PIE-FCCS), Li et al. investigated potential colocalization between the signaling proteins N-Ras and K-Ras4B in model lipid membranes. The experiments revealed that both proteins approach within nanometer distances in disordered membrane phases but diffuse independently, excluding stable complex formation. Complementary AFM measurements confirmed that their presence alters lateral membrane organization, indicating a lipid-mediated, repulsive interaction rather than direct association.

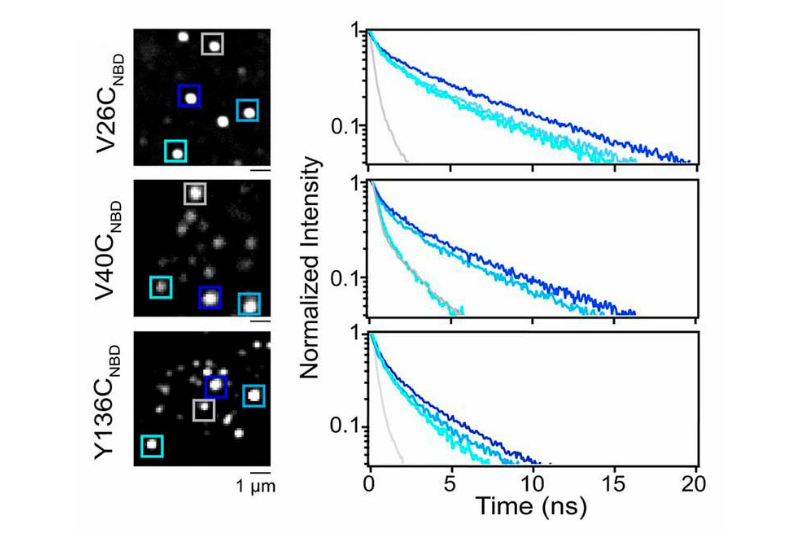

Using fluorescence lifetime imaging microscopy (FLIM) on unroofed cells, Kaur et al. investigated site-specific interactions between α-synuclein and native plasma membranes. Lifetime analysis of NBD-labeled protein variants revealed distinct conformational subpopulations at individual exocytic sites, indicating heterogeneous membrane engagement. The results challenge existing structural models by showing that α-synuclein adopts multiple membrane-bound conformations depending on its local lipid environment.
Technical note on picosecond pulsed laser module ViSIR for time-resolved spectroscopy and microscopy, including FLIM, STED imaging, and PIE-STED-FCS.
