Compact Picosecond Seed Lasers

Reliable picosecond seed lasers designed for seamless OEM integration. 808 – 1560 nm
CPDL-S-F/FA compact picosecond seed laser module with USB and RF interfaces for OEM photonics integration
Table of contents

Key Benefits

Reliable amplifier seeding
Easy OEM integration
Higher available power
Stable timing performance
Repeatable fiber coupling

Available Configurations

Wavelengths

Wavelength (±10) [nm]
Type
Pulse (FWHM) [ps]
Max. rep. rate [MHz]
Avg. power [mW]
CW power [mW]
1030
CPDL-S-FA-1030
< 90
100
30
-
1064
CPDL-S-F-1064
< 90
100
1.6
-
1064
CPDL-S-FA-1064
< 90
100
30
-
1560
CPDL-S-FA-1560
< 90
100
50
-
Detail explanations and measurements conditions for the listed specifications are provided in the datasheet.

Specifications

Fiber receptacleFC/APC, single mode PM fiber with built in optical isolator
Max reverse launched power< 50 mW
Power Input Voltage12 V (max. 18 V)
Currentmax. 1.7 A
External power supply100 to 240 VAC, 50/60 Hz, max. 100 Watt
Connector typeLEMO EXG0B302HLN-A
Dimensions (l × w × h)210 x 118 x 47.4 mm
Net weight laser head0.8 kg
Total weight incl. power supply, etc1.6 kg
Power dissipationmax. 20 W
Operating Temperature15 to 35 °C
Amplitudemax. +5 V
External frequencysingle shot to 100 MHz
Trigger threshold~ +0.4 V
Impedance50 Ohm
Connector TypeSMA (female)
Internal PLL frequency range1 kHz - 100 MHz
Amplitude+5 V for laser ON; 0 V for laser OFF
Impedancemin. 10 kOhms
Connector typeSMA (female)
Connector typeMini-USB 2, type B
Baud rate115200
Data8 bits
Paritynone
Stop1 bit
Connector typeSub-D9 female
Baud rate115200
Data8 bits
Paritynone
Stop1 bit

Download the datasheet here.

* If the RS 232 is chosen then the USB Port is no longer available.

Laser Safety Warning Label (Class 3B)
Laser Safety Warning Label (Class 3B)

All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.

Reliable Picosecond Seed Lasers for Seamless System Integration

Compact OEM Laser Heads with Digital Control and Fiber Output

PicoQuant’s CPDL-S-F/FA Series offers compact picosecond seed lasers designed for seamless OEM integration. All parameters are controlled digitally via USB or RS-232, removing the need for an external driver and simplifying system architecture. Covering key wavelengths from 1030 to 1550 nm, with pulse widths around 100 ps (and down to 20 ps for selected models), the series delivers reliable timing, flexible repetition rates, and robust FC/APC fiber output for demanding amplifier chains and embedded photonics applications.

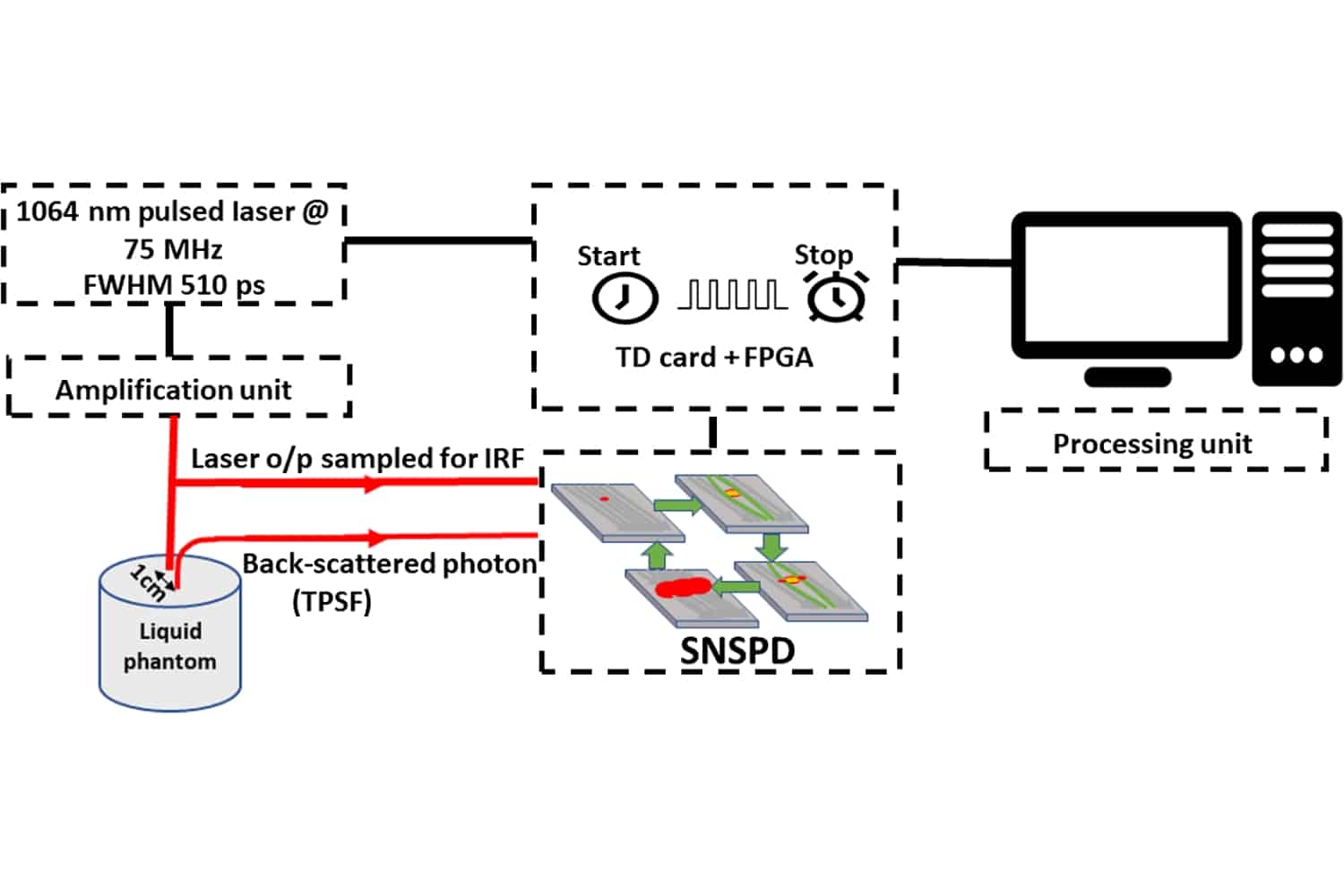

Optical configuration for TD-DCS measurements. An amplified picosecond seed laser illuminates the phantom. One SNSPD channel records the TPSF, while the second measures the IRF. The detected signals are processed via TDC cards and an FPGA-based processing unit. Adapted from Mazumder et al., Neurophotonics 8(3), 035005 (2021).

Picosecond Lasers for Advanced Optical Measurements

In neuroscience imaging setups, CPDL-S-F/FA lasers offer reliable picosecond excitation at 1030–1550 nm, ensuring clean temporal profiles and stable fiber delivery. Their compact OEM design simplifies integration into multimodal instruments that probe neural dynamics, perfusion changes, or optically driven physiological responses.

CPDL-S-F/FA lasers provide stable picosecond pulses and narrow-linewidth NIR output ideal for TD-DCS systems. Their precise timing, flexible repetition rates, and fiber-ready design enable accurate photon time-of-flight selection, supporting deeper sensitivity and improved blood-flow measurements in advanced neuromonitoring setups.

Stable Fiber-Coupled Output

Built on our proven diode-based platform, these narrow-linewidth NIR sources provide stable picosecond pulses with optional fiber amplification for higher output power. The FC/APC fiber output ensures reliable coupling into polarization-maintaining single-mode fibers, supporting consistent alignment, stable long-term operation, and straightforward integration into OEM architectures.
