Stand-Alone Gain-Switched Picosecond Lasers
Prima
3-Color Gain-Switched Picosecond Laser
- NEW: three colors can be selected from 405, 450, 488, 515, 640 nm
- Compact, stand-alone
- Pulsed and CW operation, fast CW switching
- Suitable for measuring fluorescence lifetime (ns) and photoluminescence lifetime (µs - ms)
- Triggerable internally and externally, up to 200 MHz
- Fully computer controlled
- SM-PM fiber-coupling is available for combination 450, 515, 640 nm with 35% coupling efficiency
"We can perform about 90% of our spectroscopy experiments with the three excitation wavelengths provided by Prima. Prima can greatly simplify our optical set-up thanks to its small size and fiber output, which facilitates its use."
Dr. Alexandre Fürstenberg
Group leader and senior lecturer (MER), University of Geneva
Prima is a solution for researchers who
- need more than one wavelength
- don't have space in the lab
- measure a short decay time (ns) and a long one (µs-ms)
- deal with materials that have a poor luminescence quantum yield
- would like to avoid daily alignment and laser maintenance
Red, green, and blue: the three most utilized wavelengths
Each colour can be generated individually, one at a time. These wavelengths are the three most commonly used in materials science, chemistry and life science for routine excitation in spectroscopy or microscopy applications to study a wide range of samples, including novel nanomaterials or quantum dots.
Pulsed, CW, and fast switched emission modes
Prima offers full flexibility, enabling you to perform time-resolved or steady-state measurements. Fast CW switching is a smart solution for measuring longer lifetimes in the µs to ms range. It is especially efficient for materials with a poor luminescence quantum yield. The pulsed mode can be driven either internally at selected repetition rates between 100 Hz and 200 MHz or externally, with rates ranging from single shot up to 200 MHz. Moreover, you can combine Prima with other laser diode heads to create even more sophisticated excitation patterns, such as bursts, Pulse Interleaved Excitation (PIE), or Alternative Laser Excitation (ALEX).
General specifications
Optical out | |||||
---|---|---|---|---|---|
Available wavelengths1 [nm] | 405 | 450 | 488 | 515 | 640 |
Max pulsed power2 [mW] | 10 | 10 | 10 | 10 | 10 |
Pulse duration [ps] | < 130 | < 130 | < 130 | < 170 | < 100 |
Max CW power [mW] | 50 | 50 | 50 | 50 | 50 |
Beam dimension3 [mm] | 0.8 ± 0.30 | 0.8 ± 0.30 | 0.8 ± 0.30 | 0.8 ± 0.30 | 0.8 ± 0.30 |
Beam circularity | typ. > 0.5 | typ. > 0.5 | typ. > 0.5 | typ. > 0.5 | typ. > 0.5 |
Polarization | linear, vertical | ||||
Polarization Extinction Ratio (PER) | typ. > 1:10 (> 10 dB) | ||||
Spectral width FWHM [nm] (pulsed) | < 3 | < 4 | < 4 | < 6 | < 2 |
Spectral width FWHM [nm] (CW) | < 2 | < 2 | < 2 | < 3 | < 2 |
Repetition rates | |||||
Internal | |||||
Range | User selectable 1 kHz to 200 MHz 1000 increments of 1 kHz from 1 to 999 kHz 200 increments of 1 MHz from 1 to 200 MHz |
||||
External | |||||
Range | 0 Hz to 200 MHz | ||||
Trigger level | -1V ... +5V into 50 Ohm | ||||
Jitter | < 20 ps | ||||
Connector | SMA | ||||
Synchronization output | |||||
Amplitude | < -800 mV into 50 Ohm (NIM) | ||||
Connector | SMA | ||||
Gating | |||||
Rise / Fall Time | < 3 ns | ||||
ON Time Gate | freely adjustable from < 10 ns to 1 ms | ||||
OFF Time Gate (as a factor of ON Time Gate) |
freely adjustable from 1 to 255 | ||||
Impedance | 10 kOhms with pull-up 50 Ohms with pull-down |
||||
Connector | SMA | ||||
Dimensions | |||||
Size (h x w x l) | 75 x 83 x 140 mm | ||||
Weight | approx. 1 kg | ||||
Operation | |||||
Temperature range | 10 – 35 °C | ||||
Rel. humidity | < 80 % (non condensing) | ||||
Maximum power consumption | < 30 W | ||||
Interface | |||||
PC interface | USB 2.0 | ||||
Connector | USB-C | ||||
Operating system | WindowsTM 10 |
1 Typical value in Pulsed mode. A slight shift to longer wavelengths in CW mode.
2 This is the maximum average power at maximum intensity setting and max repetition rate. A pulse broadening up to 500 ps FWHM is possible at maximum intensity setting.
3 Measured at 1 m distance from laser aperture.
All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.
The Prima 3-Color Gain-Switched Picosecond Laser can be used for various applications. It is the ideal tool for covering most of your daily needs when it comes to exciting a broad range of samples for tasks such as
- Materials Science and chemical research
- Life Science
- Photoluminescence lifetime and quantum yield measurements
- Fluorescence lifetime measurements
- Time-resolved microscopy and single molecule detection (FLIM, FRET, PIE-FRET, FCS)
- Pulsed Interleaved Excitation (PIE)
- Detector testing
- Antibunching

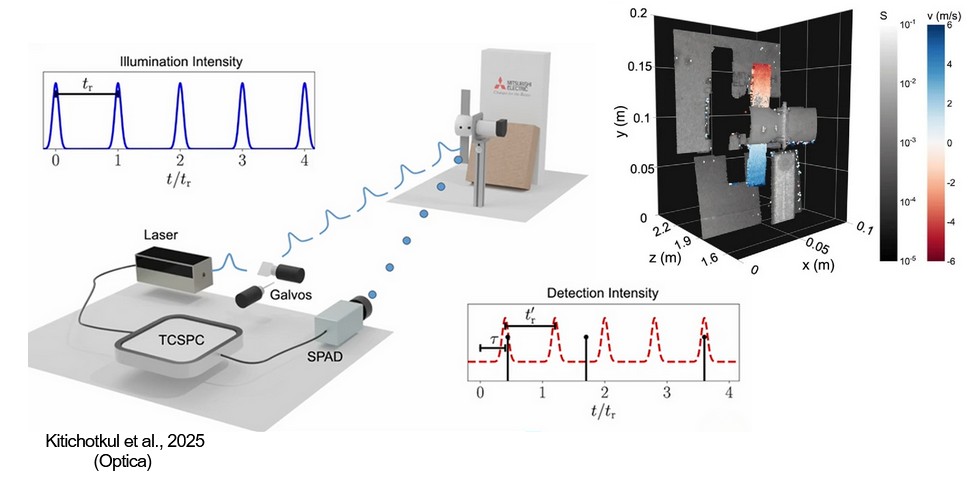

- LiDAR
The following documents are available for download
