LED Characterization

Optical Characterization of LED Emission Dynamics

Studying emission dynamics, recombination processes, and material quality in LED and OLED devices through optical and time-resolved characterization methods.
Microscopy image of a smartphone display captured through a 20x objective showing individual red, green, and blue pixels used for optical LED characterization.
Table of contents

Optical Characterization of LED and OLED Devices

LED and OLED Research in Materials Science

Light-emitting diodes (LEDs) are central to modern lighting and display technologies, ranging from conventional inorganic LEDs to OLEDs, QLEDs, µLEDs, nanoLEDs, and perovskite LEDs (PeLEDs). Their performance is determined by material composition, layer structure, and interface quality. The optical characterization provides direct access to these properties, enabling comparative evaluation of emerging emitter materials and device architectures under controlled experimental conditions.

Emission Dynamics and Recombination Processes in LEDs and OLEDs

The efficiency of LED and organic LED (OLED) devices is closely linked to charge carrier dynamics and recombination pathways. Radiative and non-radiative processes compete on fast timescales and are strongly influenced by defects, traps, and local material inhomogeneities. Shortened emission lifetimes typically indicate increased non-radiative recombination, leading to efficiency losses. Resolving these dynamics is essential for understanding performance limitations and degradation mechanisms in light-emitting materials.

Key Optical Processes Governing LED and OLED Performance

Optical emission in LEDs and OLEDs arises from a complex interplay of carrier injection, transport, trapping, and recombination. Spatial variations in emission intensity and lifetime reveal non-uniformities introduced during material growth or device fabrication. These effects directly impact brightness, efficiency, and operational stability. Optical characterization methods allow researchers to correlate microscopic material properties with macroscopic device performance.

Spectrum of LED die and hybrid QD-LED indicated on CIE 1931 chromaticity diagram.

Optical and Time-Resolved Methods for LED Characterization

Photoluminescence (PL) and electroluminescence (EL) techniques provide complementary insight into LED and OLED materials by probing both intrinsic material properties and device operation under electrical excitation. Time-resolved approaches such as TRPL enable quantitative analysis of carrier lifetimes, diffusion, and recombination pathways. When combined with spatially resolved measurements, these techniques reveal performance-limiting inhomogeneities and support systematic optimization of emitter materials and fabrication processes to reduce non-radiative losses.

Display Pixel Characterization

The performance of display pixels is defined by properties such as color accuracy and response time. These characteristics depend on the emission spectra and luminescence dynamics of the pixel materials used in OLED and AMOLED displays. Optical and time-resolved characterization methods provide direct access to these parameters, supporting detailed analysis of pixel-level emission behavior.

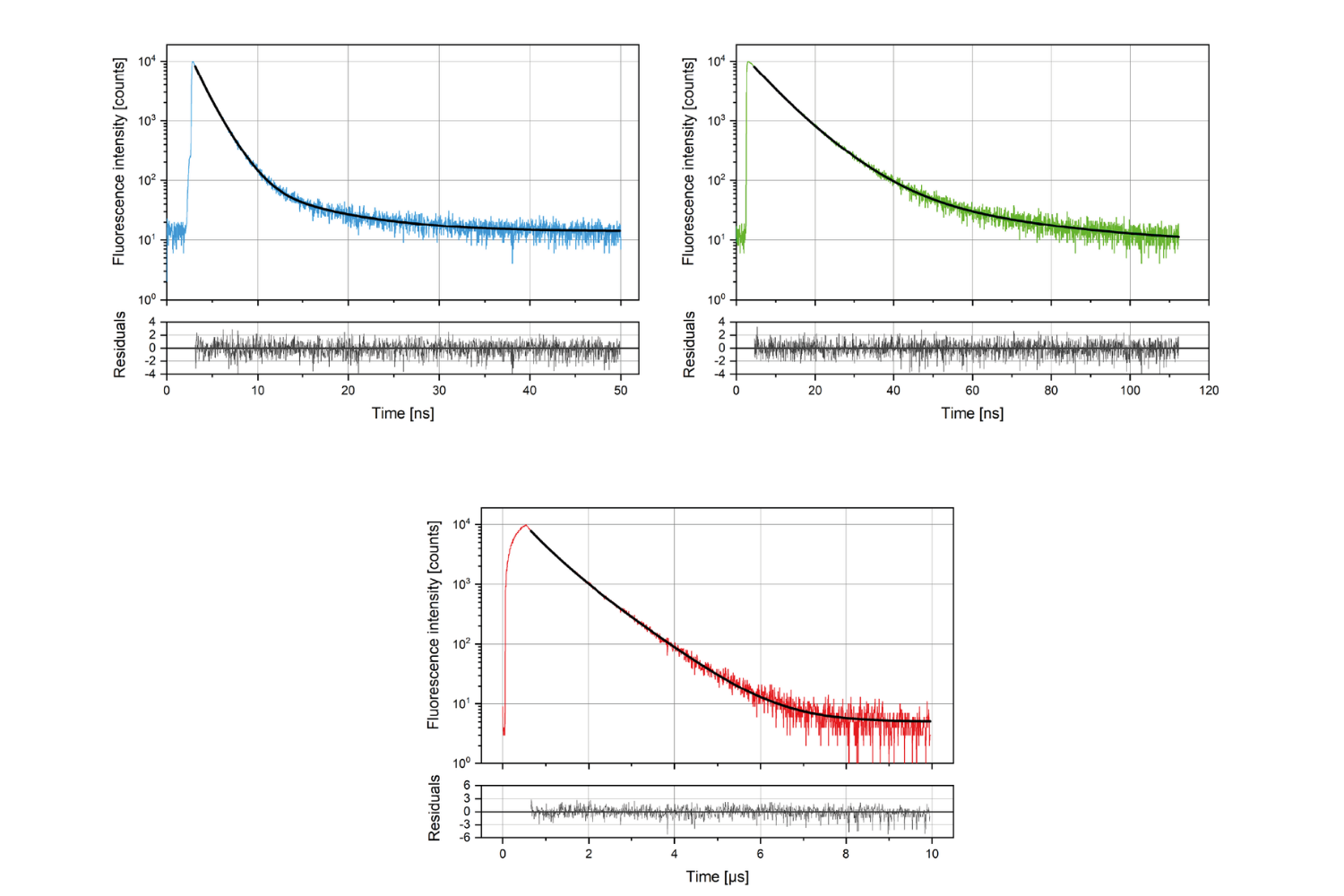

TRPL decays measured from individual blue, green, and red pixels of a smartphone display

Pixel Characterization with TRPL Spectroscopy

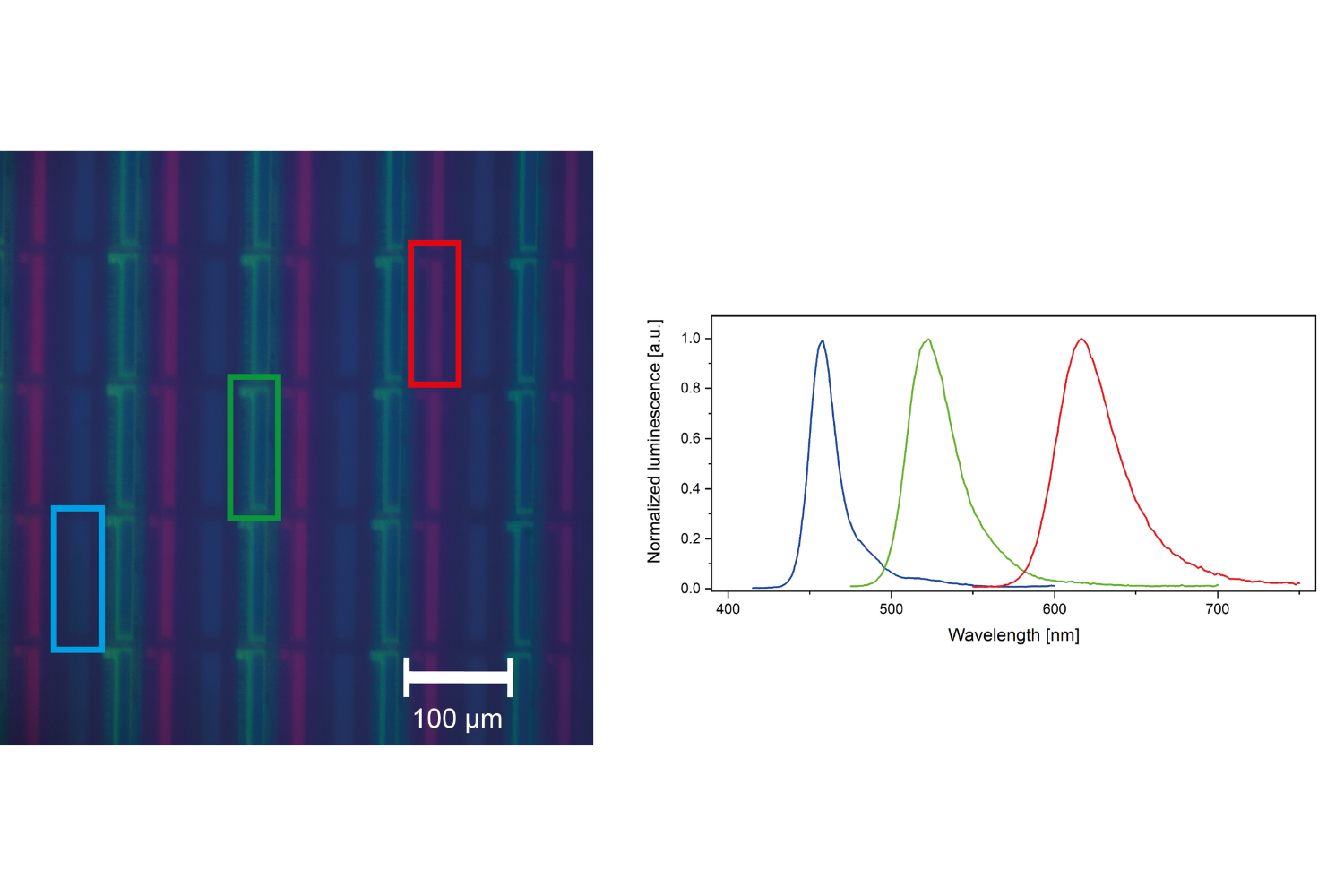

Individual blue, green, and red pixels of a commercial smartphone display were analyzed using time-resolved photoluminescence spectroscopy. Steady-state spectra and luminescence decays were recorded from single pixels, revealing wavelength-dependent emission dynamics and lifetimes relevant for color accuracy and response behavior.

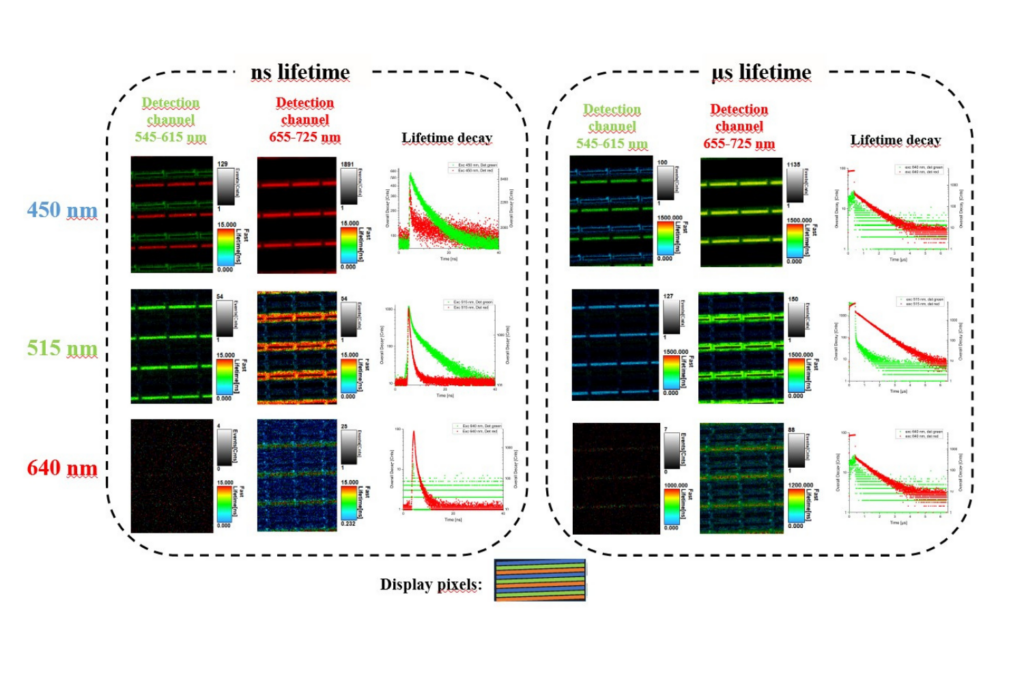

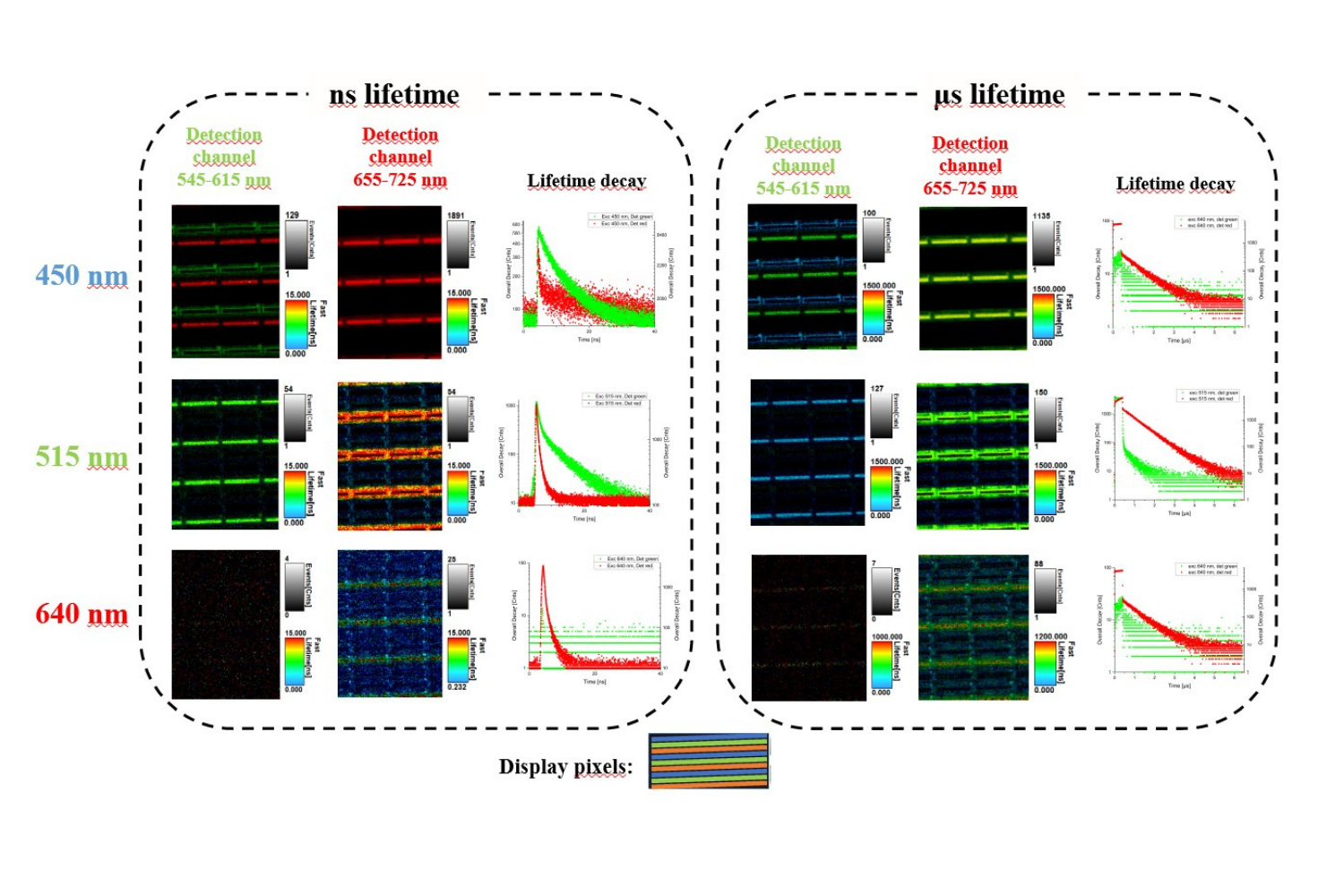

Time-resolved photoluminescence lifetime map of a smartphone display showing nanosecond and microsecond emission dynamics of red, green, and blue pixels.

Pixel Characterization with TRPL Imaging

A smartphone display was investigated using TRPL imaging to map spatial variations in pixel emission dynamics. Lifetime maps revealed both nanosecond and microsecond decay components across the display, reflecting differences in pixel materials and operating characteristics relevant for response time and display performance.

QLEDs

Quantum dot-based LEDs combine inorganic LEDs with wavelength-selective quantum dots to achieve high color purity and efficiency. Their performance is governed by radiative recombination processes and energy transfer dynamics within the quantum dot layers. Optical and time-resolved characterization provides direct insight into recombination pathways, trap states, and loss mechanisms that limit device efficiency and color performance.

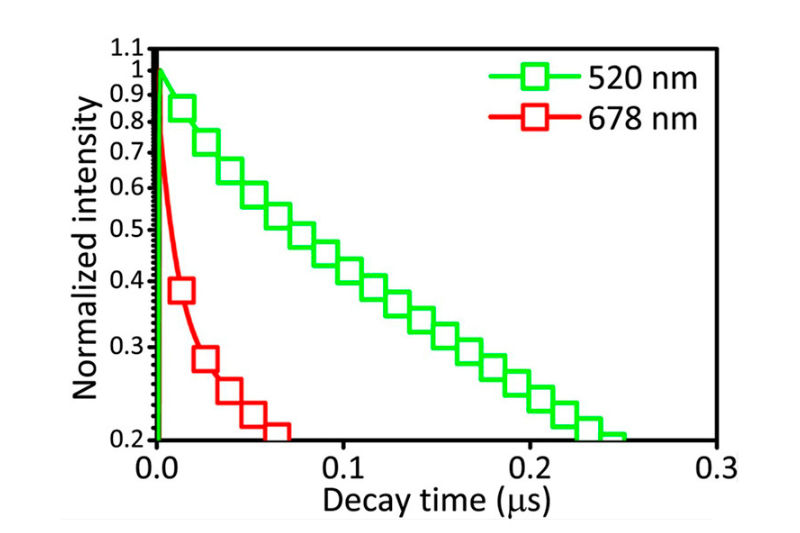

Time-resolved photoluminescence decay curves of white-emitting CdSe quantum dots showing inter-band and surface-state recombination pathways.

Recombination Dynamics of Inter-Band and Surface States

TRPL measurements on white-emitting magic-sized CdSe quantum dots revealed distinct recombination pathways associated with inter-band and surface-state emission. Decay curves recorded at different emission wavelengths showed longer lifetimes for surface-state recombination, reflecting charge carrier trapping at the quantum dot surface and its contribution to broadband emission behavior.

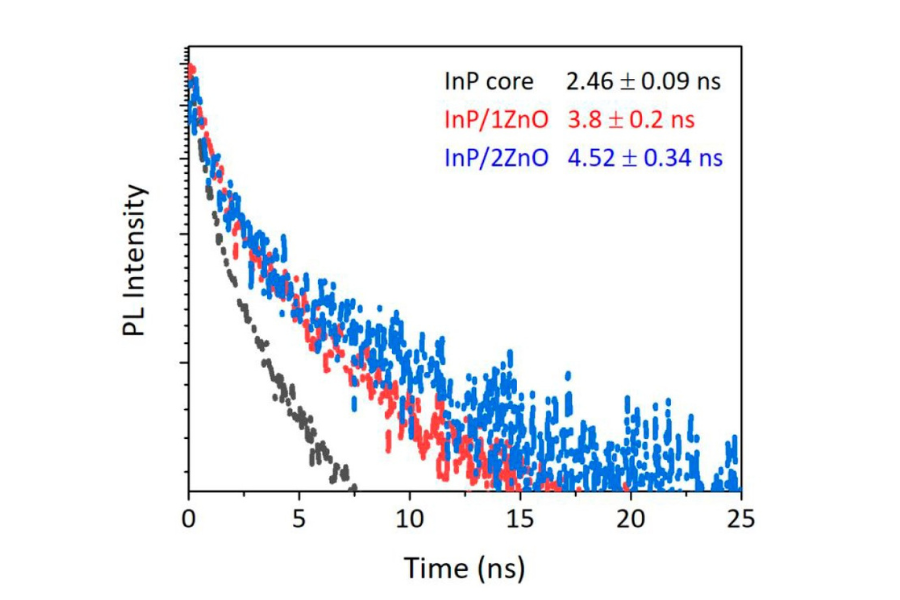

Time-resolved photoluminescence decay curves of quantum dots with varying shell thickness embedded in films showing improved radiative recombination efficiency.

Reduced Energy Transfer Losses in Core–Shell Quantum Dots

TRPL analysis of InP-based quantum dots with varying shell thicknesses demonstrated reduced energy transfer losses in core–shell structures. Increased photoluminescence lifetimes were observed for thicker shells, indicating suppressed non-radiative interactions between neighboring dots and improved radiative recombination efficiency in solid-state quantum dot films.

Perovskite LEDs

Perovskite LEDs offer excellent color purity and tunable emission due to the adjustable bandgap of perovskite materials. At the same time, material stability, environmental sensitivity, and process reproducibility remain key challenges. Optical and time-resolved characterization methods are essential for understanding degradation mechanisms, recombination dynamics, and the influence of fabrication strategies on device performance and material quality.

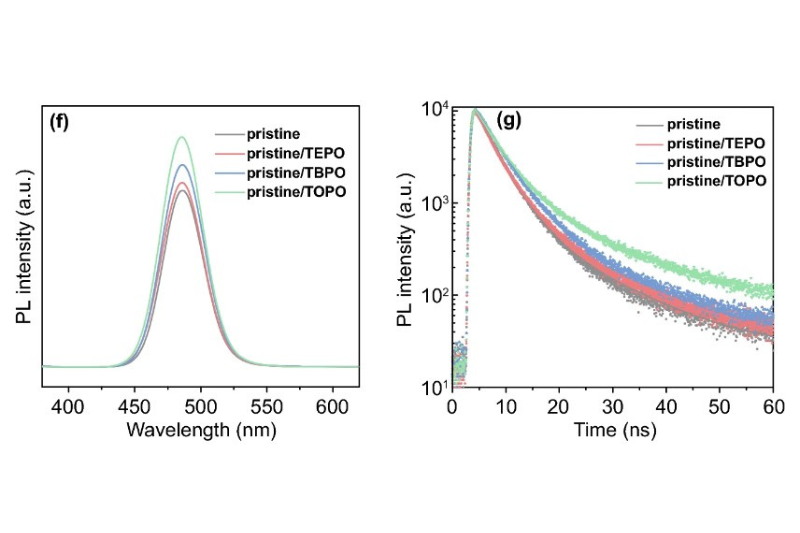

Steady-state photoluminescence spectra and time-resolved photoluminescence decays of perovskite films with different passivating agents revealing reduced trap-assisted recombination.

Impact of Passivating Agents Revealed by TRPL Spectroscopy

TRPL spectroscopy was used to study quasi-2D perovskite films treated with different passivating agents. Biexponential decay analysis revealed reduced trap-assisted non-radiative recombination and increased radiative lifetimes when TEPO, TBPO, or TOPO were applied, indicating effective defect passivation and improved carrier confinement in blue-emitting perovskite layers.

Photoluminescence Measurements

Compact Wavelength Selection with FlexLambda Kit

Software-controlled wavelength selector for visible and NIR spectral range, high transmission rate for highest sensitivity, compatible with widefield and confocal microscopes.
Learn more
FlexLambda Kit: Compact Wavelength Selection Unit
Relevant for Your Research​

Matching Methods

All Applications & Methods

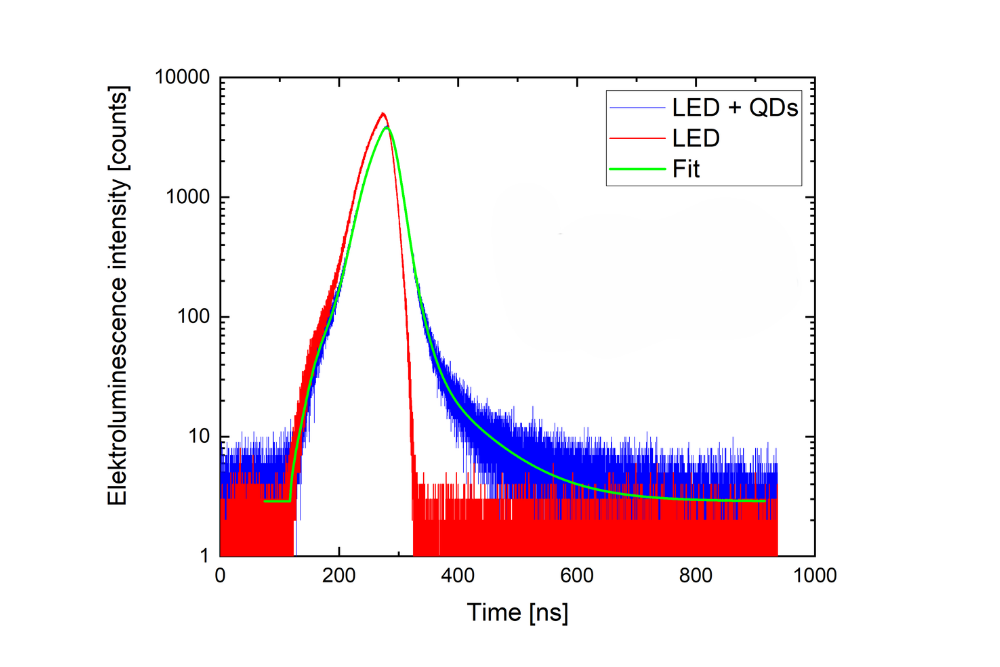

Time-resolved electroluminescence decay of LED and quantum dot device
