Nanosecond Pulse Shaping

PPL 512 / PPA 512 NEW

Programmable Pulsed Laser

  • Programmable nanosecond pulse shapes
  • 0.1 ns to CW
  • Average power up to 20 mW
  • Extinction ratio up to 70 dB
  • FC/APC output, polarization maintaining

Arbitrarily shaped pulses generated with the PPL 512 / PPA 512The PPL 512 / PPA 512 is a stand-alone, computer controlled laser platform for the generation of nanosecond pulses with programmable pulse shapes. The resulting laser signal, featuring the defined pulse shape, is then output to a single mode fiber. In order to program the pulse shape, the PPL 512 / PPA 512 is connected to a host computer via a standard USB interface. The very compact form factor makes it ideal for integration into larger amplified laser chains. By programming fast current slopes, not only nanosecond pulses can be generated but also gain switched operation becomes possible, which results in picosecond optical output pulses. Also, undesired ringing effects at fast switch-on transients can be reduced by defining specific current ramps. Moreover, saturation effects of optical amplifiers can be pre-compensated, which makes the device an ideal seeding source for fiber or solid-state amplifiers.

Programming arbitrary pulses profiles – byte by byte

Sawtooth shaped pulses generated with the PPL 512 / PPA 512The PPL 512 / PPA 512 is based on a programmable waveform platform capable of generating pulse patterns in a cyclic sequence of 512 bytes. The 512 bytes are stored in a special high-speed memory that can be read out at the full speed of 5 GS/s. This results in a timing resolution of 200 ps per byte (other values may be made available on request). With such a 512 byte data set, arbitrary pulse shapes can be defined with an amplitude resolution of 8 bits (0 to 255). This pre-defined sequence can then be run as a gapless loop at the full speed of 5 GS/s or started and stopped by an external control signal.





One laser platform, multiple variations

Burst of pulses generated with the PPL 512 / PPA 512Multiple model versions can be derived from the main PPL 512 / PPA 512 laser platform, depending on the internal architecture and mode of modulation. The available palette encompasses:

  • the direct modulation of the laser diode (PPL 512 – xxxx1)
  • the modulation of the cw driven laser diode via a semiconductor optical amplifier (PPL 512 – xxxx SOA1)
  • the direct modulation of the laser diode including a fiber amplifier (PPL 512 – xxxx FA1) – on request
  • the modulation via a semiconductor optical amplifier NOT including the cw diode (PPA 512 – xxxx1)

The PPL 512 / PPA 512 can be configured to provide programmable pulses at wavelengths such as 1030 or 1064 nm, 1.5 or 2 µm, as well as many wavelengths in the visible range.

1 the “xxxx” label indicates the laser’s emission wavelength


Mainframe
Power input voltage 12 V (max. 18 V)
Current max. 1.7 A
Amplitude 50 mVrms typ., 2 Vrms max.
External power supply 100 to 240 VAC, 50/60 Hz, max 100 Watt
Connector type LEMO EXG0B302HLN-A
Dimensions 210 × 118 × 47.4 mm (W × D × H)
Net weight (laser head) 0.8 kg
Total weight (incl. power supply, etc) 1.6 kg
Power dissipation max. 20 W
Operating Temperature 15 to 35 °C
Pulse pattern
Length 512 bytes
Readout speed 5 GS / s; 200 ps time bins; other sampling rates < 5 GS / s on request
OP mode input
Amplitude > 0.75 and < 1.1 V continues pattern generation with byte 0 after reading all 511 bytes
< 0.2 V: pattern generation stops after reading 508 bytes unconnected: free-running mode
Impedance 500 Ohms
Connector SMA (female)
Synchronization output
Amplitude +500 mV into 50 Ohm; falling edge at byte 253; rising edge at byte 508
Impedance 50 Ohm
Connector SMA (female)
Status output
Amplitude 5 V for Laser ON; 0 V OFF
Impedance min. 10 kOhm
Connector SMA (female)
USB 2.0 UART (virtual COM port)
Connector type Mini-USB 2, type B
Baud rate 115200
Data 8 bit
Parity none
Stop 1 bit
Optical output
Fiber receptacle FC/APC, narrow key, PM single mode optical fiber built in optical isolator
Max. reverse launched power < 50 mW

Laser Class Sign


All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.

The table below is a non-exhaustive list of possible variants. Please contact PicoQuant, other wavelengths are available on request, high power fiber preamplified version available on request!

Type Wavelength [nm] Min. pulse duration [ns] Rise / fall time [ps] Max. avg. power [mW] Extinction ratio Linewidth (FWHM) [nm] Optical input
PPL 512 – 1030 1030 ± 2 nm 0.1 typ. 50 20 > 20 dB typ. < 0.1 none
PPL 512 – 1030 – SOA 1030 ± 2 nm3 0.5 typ. 250 20 > 50 dB typ. < 0.05, near transform limited none
PPA 512 – 1030 1030 ± 5 nm1 0.5 typ. 250 20 > 50 dB5 N.A.2 FC/APC fiber receptacle, polarisation maintaining.
Max CW input power: 20 mW5

PPL 512 – 1050 1053 ± 1 nm 0.1 typ. 50 20 > 70 dB typ. < 0.1 none
PPL 512 – 1050 – SOA 1053 ± 1 nm3 0.5 typ. 250 20 > 50 dB typ. < 0.05, near transform limited none
PPL 512 – 1060 1064 ± 1 nm 0.1 typ. 50 20 > 70 dB typ. < 0.1 none
PPL 512 – 1060 – SOA 1064 ± 1 nm3 0.5 typ. 250 20 > 50 dB typ. < 0.05, near transform limited none
PPA 512 – 1060 1060 ± 10 nm1 0.5 typ. 250 20 > 50 dB5 N.A.2 FC/APC fiber receptacle, polarisation maintaining.
Max CW input power: 20 mW5

PPL 512 – 1550 1550 ± 20 nm4 0.1 typ. 50 20 > 70 dB typ. < 0.1 none
PPL 512 – 1550 – SOA 1550 ± 20 nm3,4 0.5 typ. 250 20 > 50 dB typ. < 0.05, near transform limited none
PPA 512 – 1550 1550 ± 20 nm1 0.5 typ. 250 20 > 50 dB5 N.A.2 FC/APC fiber receptacle, polarisation maintaining.
Max CW input power: 20 mW5

1 PPA does NOT include the laser diode, the range of wavelengths shown corresponds to the acceptable wavelengths for the laser diode to be coupled externally
2 Depends on the CW laser input
3 Enhanced central wavelength stability!
4 Exact wavelength on request, any between 1530 and 1570 nm
5 The best perfomances in terms of extinction ratio are achieved for a CW input level of 5-8 mW, higher input power leads to more output power but a slightly decreased extinction ratio.

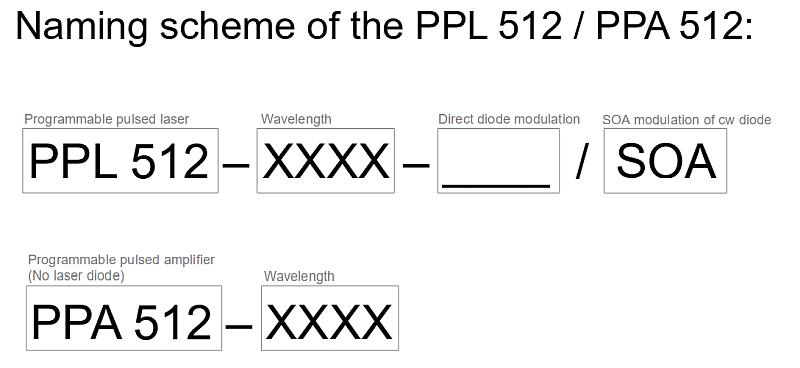

Naming scheme for the PPL 512 / PPA 512

Laser Class Sign



All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.


The PPL 512 / PPA 512 laser platform can be used for various applications, where modulated laser output is important, such as:

  • Seeding
  • Detectors and camera testing
