Picosecond Pulsed Sources
Year-End Clearance 2025 LIMITED
Exclusive Offers on Select Demo & Stock Devices
Take advantage of limited-time offers on fully tested and warrantied devices from our demo and warehouse stock.
Quantities are limited. Don’t miss your chance to get the best prices ever. Devices are available while supplies last.
- Picosecond Pulsed Sources, including LDH and LDH-I Series
- Stand-Alone Diode Laser Prima
- PicoQuant Time Taggers, including HydraHarp 400, PicoHarp 300 and TimeHarp 260
Picosecond Pulsed Sources

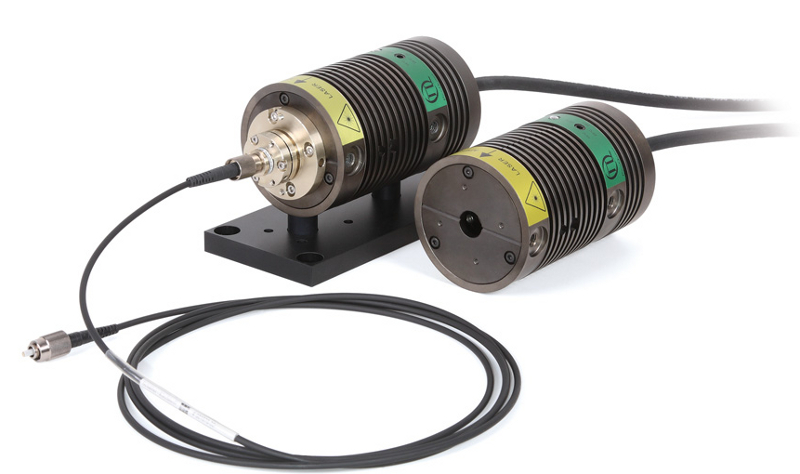

LDH Series
Picosecond Laser Diode Heads for PDL 800-D/PDL 810/PDL 828
Availability: 24 units
The LDH Series laser heads are ideally suited for any application that requires picosecond pulses with variable repetition rates. Since we use a wide variety of laser diode types for our LDH laser heads, we can offer a broad range of wavelengths, power values, and spectral widths.
Wavelength (± 10) [nm] |
Type
(LDH-)
|
Pulse width1 (FWHM) [ps] |
avg power broad pulse [mW] |
Discount |
405 | P-C-405-M | 70 | 20 | 50% |
420 | P-C-420 | 50 | 5 | 50% |
440 | D-C-440 | 60 | 4 | 40% |
450 | P-C-450-B | 60 | 5 | 30% |
450 | P-C-450-M | 100 | 20 | 40% |
470 | P-C-470 | 70 | 3 | 30% |
470 | P-C-470 | 70 | 3 | 30% |
470 | P-C-470-B | 65 | 4 | 30% |
485 | P-C-485 | 120 | 2 | 30% |
485 | P-C-485 | 120 | 2 | 30% |
520 | P-C-520-B | 150 | 5 | 30% |
595 | D-TA-595 | 100 | 0.35 | 50% |
595 | D-TA-595 | 80 | 0.25 | 50% |
595 | D-TA-595 | 100 | 0.30 | 50% |
595 | D-TA-595 | 70 | 0.25 | 50% |
660 | P-C-660 | 110 | 1 | 50% |
705 | D-C-705 | 65 | 10 | 40% |
810 | P-C-810 | 100 | 8 | 40% |
830 | P-C-830 | 70 | 3 | 50% |
940 | P-C-940 | 70 | 5 | 30% |
980 | D-C-980 | 80 | 25 | 50% |
1550 | P-F-N-1550 | 70 | 2 | 30% |
1 Shortest pulse width at min intensity setting above laser threshold. Possible pulse broadening at high intensity settings
Pulses are deconvoluted with 30 ps detection IRF. Shorter pulse widths are available on demand.
Contact us to get a quote and for further questions.

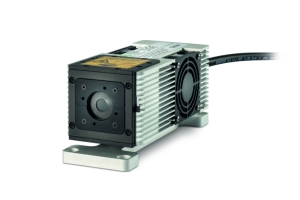

LDH-I Series
Smart Laser Diode Heads for Taiko PDL M1
Availability: 12 units remaining
LDH-I Series features a large range of smart laser heads compatible with the Taiko PDL M1 driver. Laser heads from this series provide wavelengths in the spectral range from 375 to 1550 nm and include power calibrations.
Wavelength (± 10) [nm] |
Type
(LDH-)
|
Pulse width1 (FWHM) [ps] |
avg power broad pulse [mW] |
Discount |
405 | IB-405-B | 70 | 16 | 40% |
405 | IB-405-B | 70 | 12 | 40% |
450 | IB-450-M | 160 | 90 | 50% |
470 | IB-470-B | 80 | 7 | 30% |
485 | IB-485-B | 100 | 6 | 40% |
485 | IB-485-M | 170 | 90 | 50% |
520 | IB-520-M | 170 | 35 | 50% |
640 | IB-640-B | 100 | 20 | 40% |
640 | IB-640-B | 90 | 20 | 30% |
690 | IB-690-B | 75 | 5 | 40% |
980 | IB-980-B | 90 | 7 | 40% |
1 Shortest pulse width at min intensity setting above laser threshold. Possible pulse broadening at high intensity settings
Pulses are deconvoluted with 30 ps detection IRF. Shorter pulse widths are available on demand.
Contact us to get a quote and for further questions.
Stand-Alone Diode Lasers

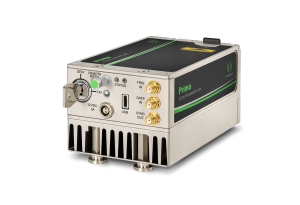

Prima
3-Color Gain-Switched Picosecond Laser
Availability: 2 units remaining
Prima offers full flexibility, enabling you to perform time-resolved or steady-state measurements. Fast CW switching is a smart solution for measuring longer lifetimes in the µs to ms range. It is especially efficient for materials with a poor luminescence quantum yield.
Wavelengths (± 10) [nm] |
Pulse width1 (FWHM) [ps] |
avg power broad pulse [mW] |
Discount |
450, 515 & 640 | 140 | 10 | 20% |
450, 515 & 640 | 150 | 10 | 20% |
1 Shortest pulse width at min intensity setting above laser threshold. Possible pulse broadening at high intensity settings
Pulses are deconvoluted with 30 ps detection IRF. Shorter pulse widths are available on demand.
Contact us to get a quote and for further questions.
PicoQuant Time Taggers

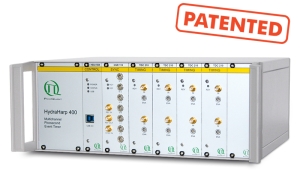

HydraHarp 400
Multichannel Picosecond Event Timer & TCSPC Module
Availability: 2 units remaining
The HydraHarp 400 is a high-end, easy to use, plug and play Time Interval Analyzer (TIA) and Time-Correlated Single Photon Counting (TCSPC) system with scalability for multiple channels (covered by patent DE 10 2008 004 549). It is connected to a PC through a USB 3.0 high speed interface. The high quality and reliability of the HydraHarp 400 is expressed by a unique 5-year limited warranty.
Type (HydraHarp 400-) |
Number of channels |
Minimum bin width |
Discount |
S + 1x TDC | 2+1 | 1 ps | 55% |
S + 2x TDC | 4+1 | 1 ps | 60% |
Contact us to get a quote and for further questions.

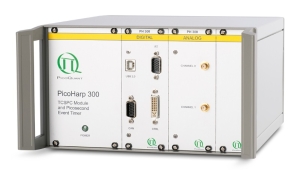

PicoHarp 300
Precise and Versatile Event Timer & TCSPC Unit
Availability: 4 units remaining
The PicoHarp 300 is a compact easy–to–use TCSPC system with USB interface. It includes all components traditionally contained in bulky racks. Its integrated design keeps cost down, improves reliability and simplifies calibration.
Type (PicoHarp 300-) |
Number of channels |
Minimum bin width |
Discount |
+ TTTR + DLL | 1+1 | 4 ps | 50% |
+ TTTR + DLL | 1+1 | 4 ps | 50% |
+ TTTR + DLL | 1+1 | 4 ps | 50% |
+ TTTR + DLL | 1+1 | 4 ps | 50% |
Contact us to get a quote and for further questions.

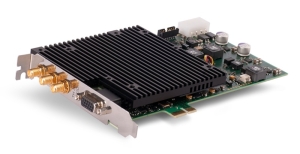

TimeHarp 260
TCSPC and MCS board with PCIe interface
Availability: 5 units remaining
The TimeHarp 260 is a compact, easy to use, Time-Correlated Single Photon Counting (TCSPC) and Multi-Channel Scaling (MCS) board for the PCIe interface.
Type (TimeHarp 260-PICO Dual) |
Number of channels |
Minimum bin width (LR) |
Discount |
+DLL+LR | 2+1 | 25 ps (2.5 ns) | 50% |
+DLL+LR | 2+1 | 25 ps (2.5 ns) | 50% |
+DLL+LR | 2+1 | 25 ps (2.5 ns) | 50% |
+DLL | 2+1 | 25 ps | 50% |
+DLL | 2+1 | 25 ps | 50% |
Contact us to get a quote and for further questions.
