Accessories
Complementary Equipment for Photon Counting Experiments
We offer a range of specialized accessories designed to enhance and support photon counting setups.
Accessories
Active Components

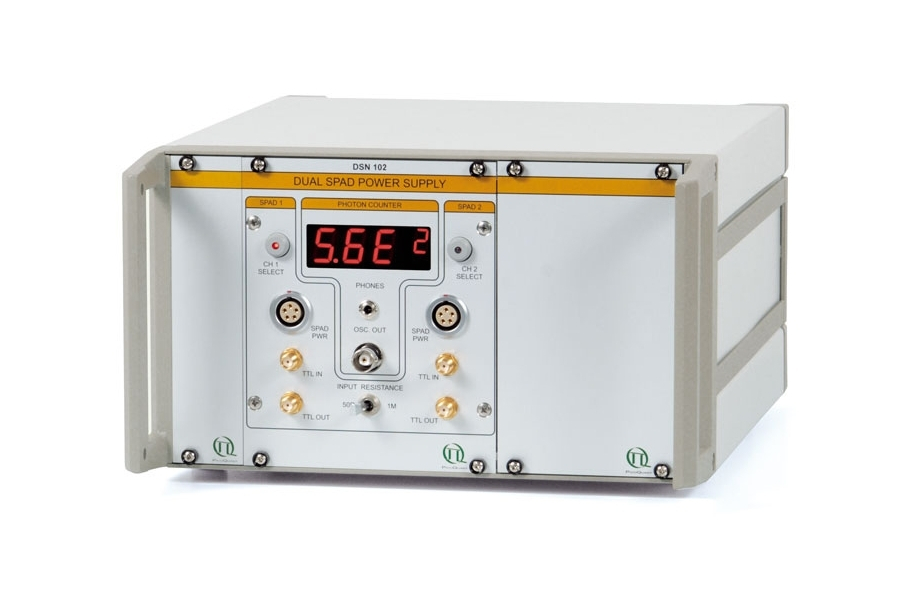

Dual SPAD Power Supply
DSN 102
- Two-channel power supply for Single Photon Avalanche Diodes (SPAD)
- Safety shut-down to prevent SPAD degradation
- Integrated counter
- Acoustic monitoring and warning

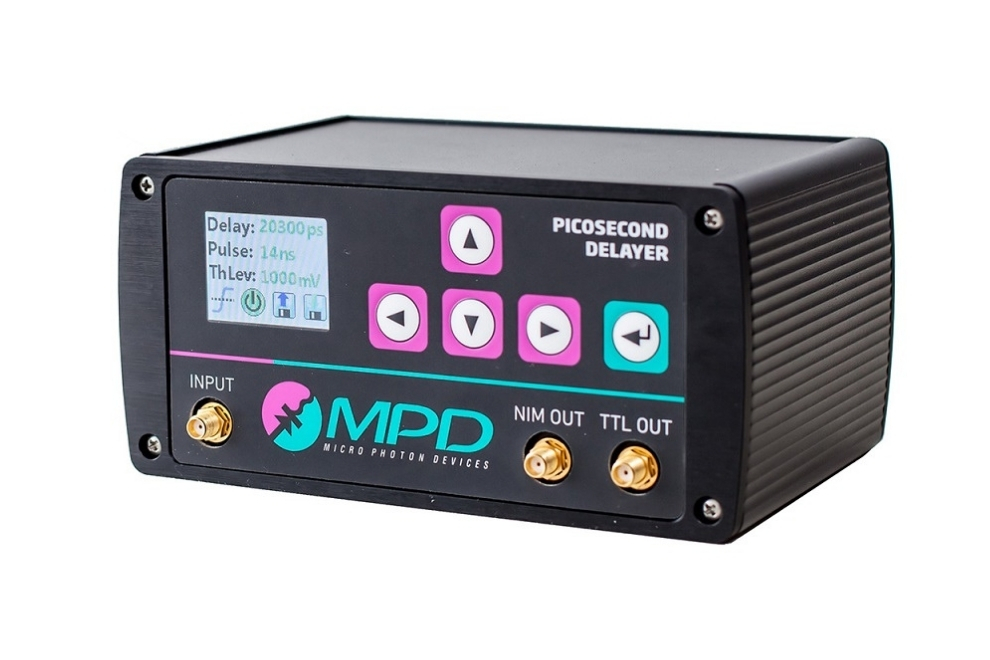

Picosecond Delayer
PSD-MOD
- 50 ns maximum delay range, 10 ps step
- TTL and NIM output pulses
- Up to 390 MHz bandwidth (NIM output)
- Programmable output width

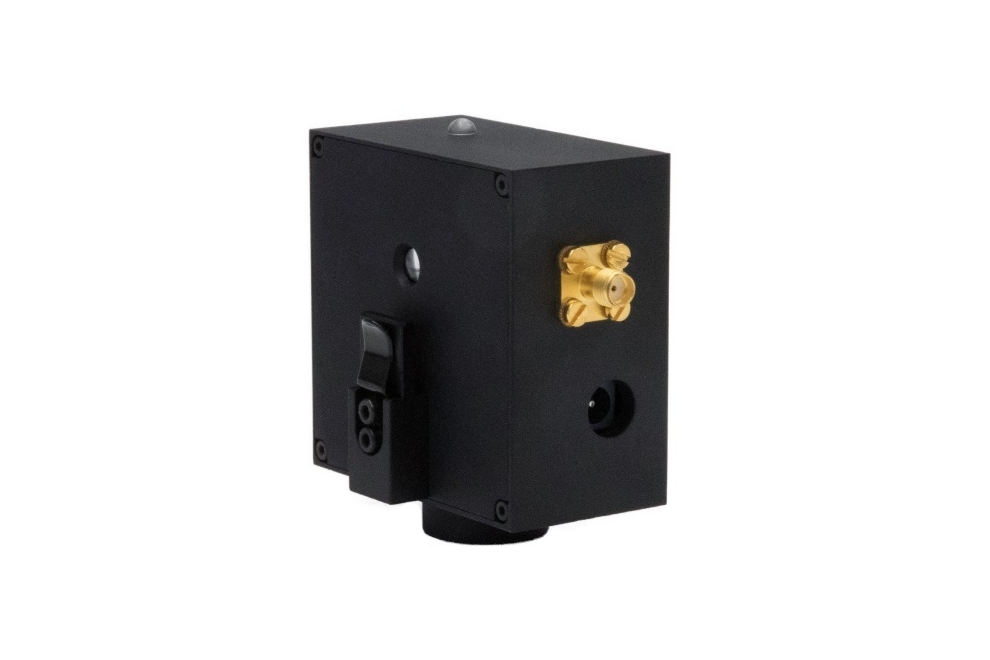

Trigger Diode Assembly
TDA 200
- Compact design
- Raise time typ. 250 ps
- Pulse width as short as 500 ps (FWHM)
- Spectral range from 350 to 1100 nm
Pre-Amplifier Module

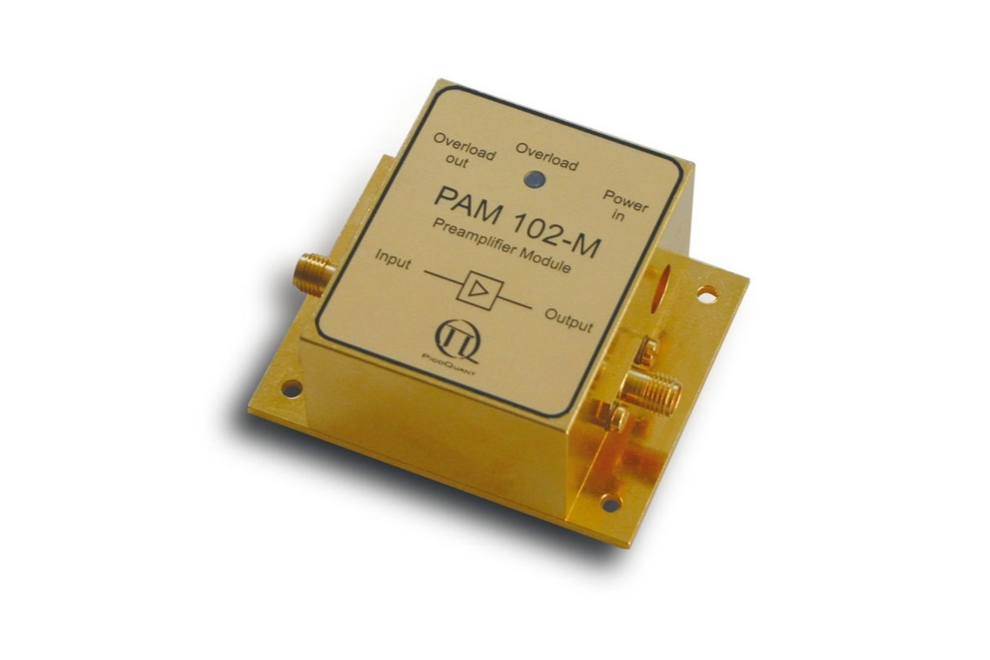

PAM 102
- Fast rise time / wide bandwidth
- Low jitter
- Ideal for low output fast photon detectors like MCP and PMT
- 3 dB bandwidth up to 1.8 GHz
Accessories
Passive Components

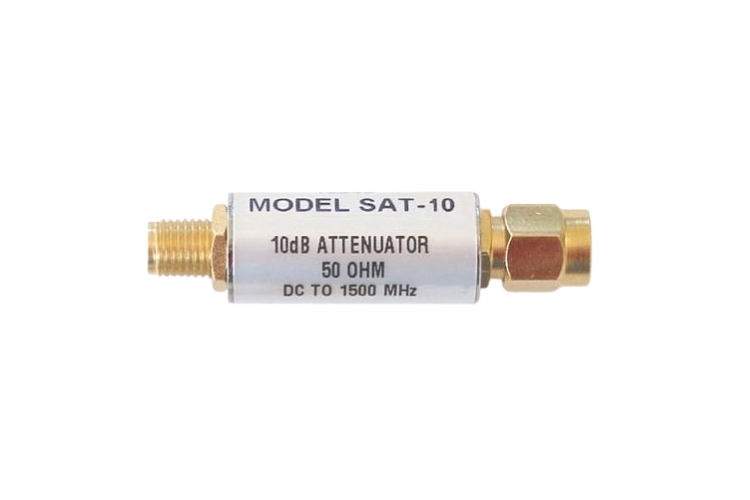

SMA Inline Attenuators
ATM Series
The ATM series attenuators are used to attenuate signals from e.g. Single Photon Avalanche Diode (SPAD) modules. The higher signal amplitude of the TTL pulses from these detectors exceeds the input voltage range for e.g. the PicoQuant TCSPC units. Available from PicoQuant are attenuators with 3 dB, 5 dB, 10 dB and 20 dB.

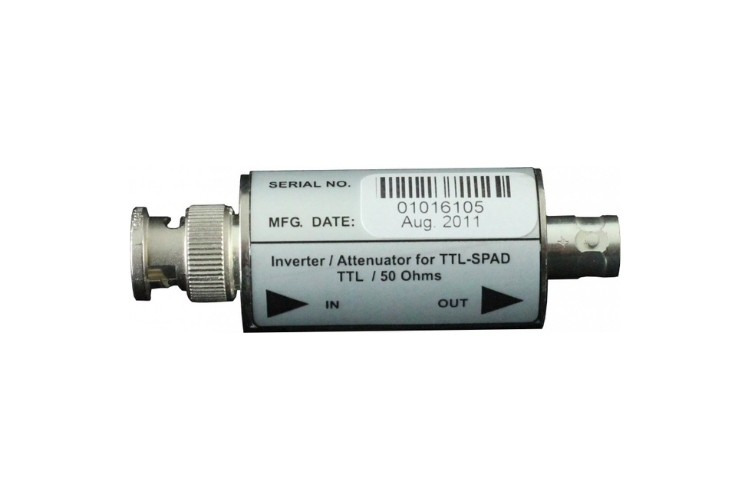

Inverter and Attenuator Module
SIA 400
The SIA 400 module is a passive module designed to invert and attenuate (20 dB) TTL pulses produced e.g. by Single Photon Avalanche Diode (SPAD) modules to negative pulses compatible with PicoQuant TCSPC units. The SIA 400 has BNC connectors at both ends.

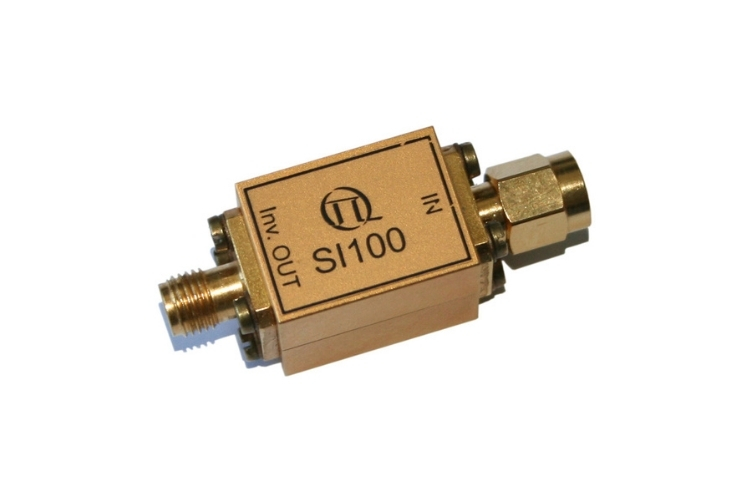

Inverter Module
SI 100
The SI 100 module is a passive module designed to invert signals from e.g. a detector or a synchronization signal from a laser source in order to make them compatible with PicoQuant TCSPC units.
Power Splitter
PSM 50/51

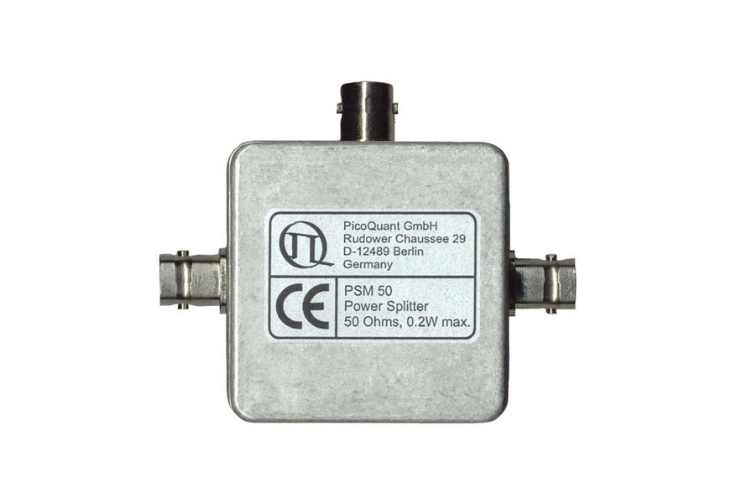

The PSM 50/51 power splitter (reflection free T-pad) allows a 50 Ohms RF source to feed two 50 Ohms loads simultaneously. This task cannot be performed by an ordinary T-pad without severe reflections and consequent signal distortion. This is particularly important in timing sensitive applications such as Time-Correlated Single Photon Counting (TCSPC). Max. power dissipation 0.2 W. The power splitter are available with either BNC (PSM 50) or SMA (PSM 51) connectors.
easy SMA access

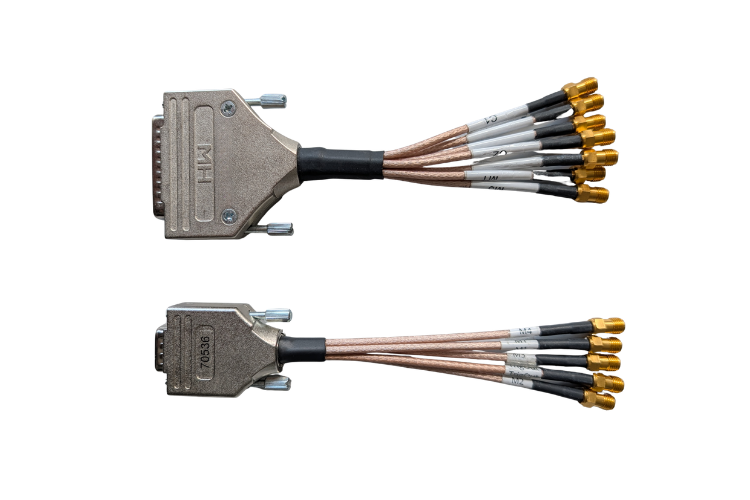

Break-Out Adapter
The specially designed break-out adapter allows easy SMA access to the marker inputs and hardware control signals of our time tagging and TCSPC units via the CTRL interface.
SMA, BNC, LEMO

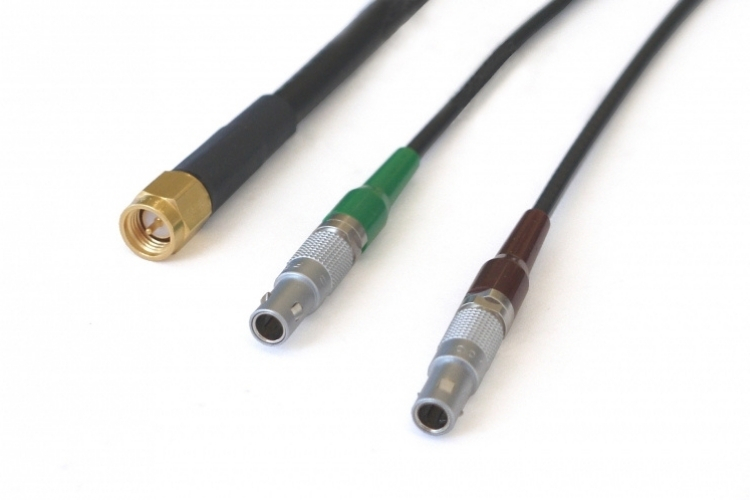

Cables
PicoQuant offers a range of signal cables with SMA or BNC connectors as well as specialized cables with Lemo connectors. For signal connections we recommend RG 223 cables. This cable type has a double braided silver plated screen which provides optimum shielding in timing sensitive applications such as Time-Correlated Single Photon Counting (TCSPC)
